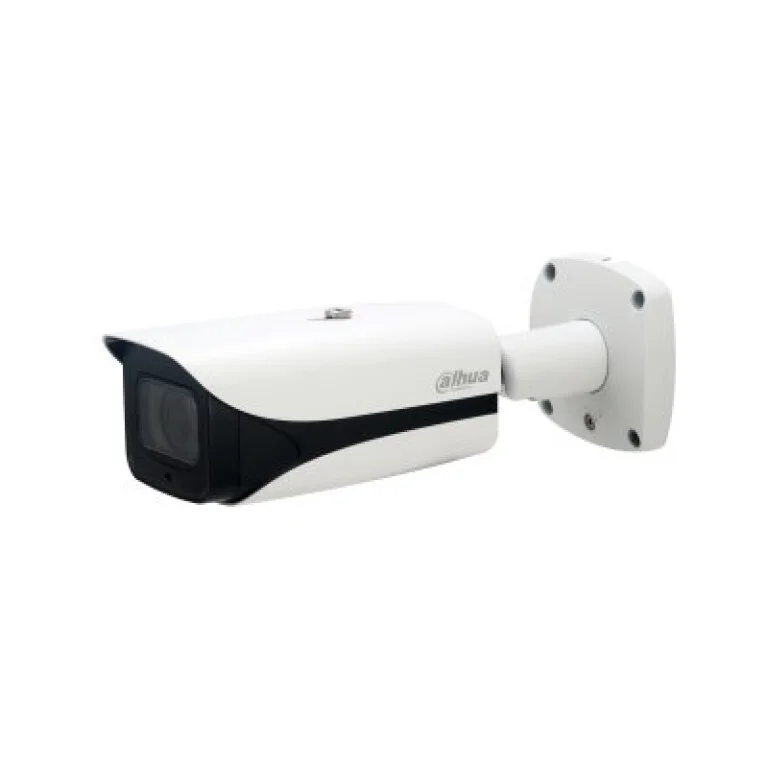

กล้องวงจรปิด Dahua IPC-HFW5442E-ZE

> 1/1.8” 4Megapixel progressive scan CMOS

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> 25/30 fps@2688 × 1520, 50/60 fps@1080P(1920 × 1080)

> WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC

> Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

> 2.7 mm–12.0 mm motorized lens

> 2/1 Alarm in/out, 1/1 audio in/out

> Max. IR LEDs Length 50 m

> Micro SD memory, IP67, IK10



คำอธิบาย

Download DataSheet IPC-HFW5442E-ZE

Camera
Image Sensor1/1.8” 4Megapixel progressive scan CMOS
Max. Resolution2688 (H) × 1520 (V)
RAM/ROM1 GB/128 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3 s–1/100000 s
S/N Ratio> 56 dB
Minimum Illumination0.003 [email protected]
Illumination DistanceDistance up to 50 m (164 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number4(IR LED)
Lens
Lens TypeMotorized vari-focal
Mount TypeBoard-in
Focal Length2.7 mm–12.0 mm
Max. ApertureF1.8
Angle of ViewH: 114°–47°, V: 62°–26°
Aperture TypeAuto
Close Focus Distance1.2 m (3.94 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
W58m(190ft)23m(75ft)12m(39ft)6m(20ft)
T131m(430ft)52m(171ft)26m(85ft)13m(43ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation RangePan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚
Artificial Intelligence
Face DetectionFace detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
Perimeter ProtectionTripwire; intrusion; fast moving (the three functions

support the classification and accurate detection

of vehicle and human); loitering detection; people

gathering; parking detection

People CountingSupport the counting of enter number, leave

number, and pass number, and displaying and

outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules

configuration. Count number of people or stay time

and link alarm.

Support queue management, and 4 rules

configuration. Count number of people or stay time

and link alarm

General Intelligence
Event TriggerMotion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly
General IntelligenceObject Abandoned/Missing
Heat MapYes
Video
CompressionH.265,H.264,H.264B,H.264H,

MJPEG (only supported by sub stream)

Smart CodecSmart H.265+/ Smart H.264+
Streaming Capability3 Streams
Resolution2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)
Frame RateMain Stream: 2688 × 1520 (1 fps–25/30 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–25/30 fps)

D1 (1 fps–50/60 fps)

Third Stream: 1080P (1 fps–16 fps)
Bit Rate ControlCBR/VBR
Bit RateH.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps

Day/NightAuto(ICR)/Color/B/W
BLC ModeBLC/HLC/WDR (140 dB)
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff/On (4 Zone, Rectangle)
Region of InterestOff/On (4 Zone)
Electronic Image Stabilization (EIS)Yes
Smart IlluminationYes
DefogYes
Flip0°/90°/180°/270°
MirrorOff/On
Privacy MaskingOff/On (4 Area, Rectangle)
Audio
Audio CompressionG.711a, G.711Mu, AAC, G.726, G.723
Alarm
Alarm EventNo SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;voltage detection;People counting in area;Stay alarm;People No. exception detection;Queue Management
Network
NetworkRJ-45 (10/100 Base-T)
SDK and APIYes
ProtocolIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
InteroperabilityONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
User/Host20 Users
StorageNAS;FTP;SFTP;Dahua Cloud;

Micro SD card 256 GB

BrowserIE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management SoftwareSmart PSS, DSS, DMSS
Mobile PhoneiOS, Android
Certifications
CertificationsCE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface
Audio Interface1/1 channel In/Out
Alarm2 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical
Power SupplyDC 12V (±30%), PoE (802.3af)
Power Consumption<10.9W
Environmental
Operating Conditions-30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Strorage Conditions-40° C to +60° C (-40° F to +140° F)
Protection GradeIP67,IK10
Construction
CasingMetal, plastic
Dimensions273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”)
Net Weight1.11 kg (2.44 lb)
Gross Weight1.51 kg (3.33 lb)
