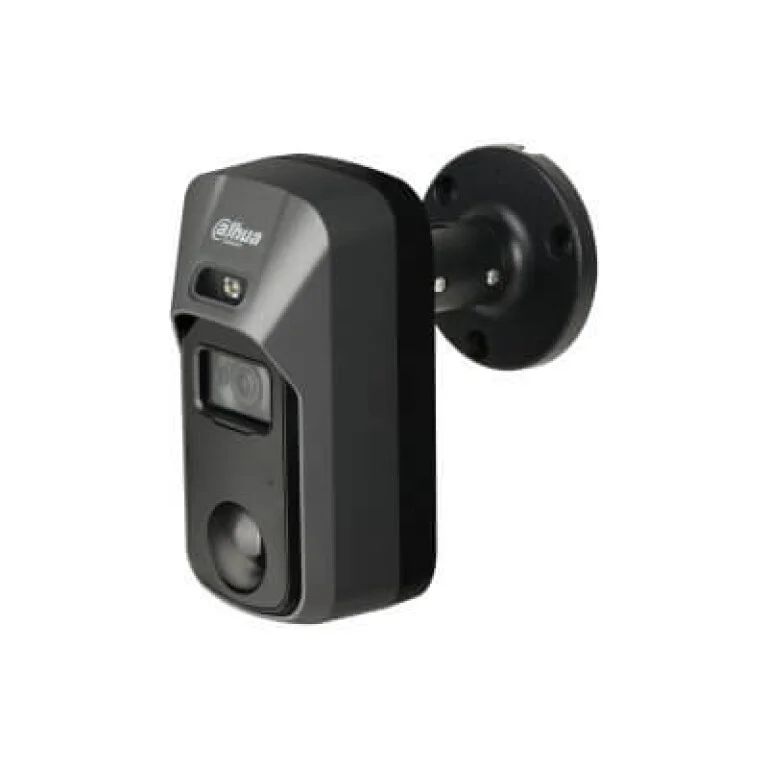

กล้องวงจรปิด Dahua HAC-ME2241C-W 2MP

> Starlight
> Max 30fps@1080P
> HD and SD output switchable
> 2.8mm fixed lens (3.6mm optional)
> Max. IR length 20m, Smart IR
> Built-in PIR, 15m/110°detecting range/angle
> Active deterrence with white light & siren
> Built-in Airfly transceiver, up to 32 wireless devices connection
> Built-in mic
> IP67, DC12V

HAC-ME2241C-W
HAC-ME2241C-W







Description

Download DataSheet HAC-ME2241C-W

Camera
Image Sensor1/2.8″ CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 20m (66feet)
IR On/Off ControlAuto / Manual
IR LEDs1
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length2.8mm (3.6mm Optional)
Max ApertureF1.6
Angle of ViewH: 110° (86.9°)

V: 60° (46.3°)

Focus ControlN/A
Close Focus Distance500mm(1200mm)

19.7”(47.2”)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect25px/m

(8px/ft)

2.8mm: 39m(128ft)

3.6mm: 55m(180ft)

Observe63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 22m(72ft)

Recognize125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 11m(36ft)

Identify250ppm

(76px/ft)

2.8mm: 4m(13ft)

3.6mm: 6m(20ft)

Pan / Tilt / Rotation
Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30/50/60fps@720P
Video Output1-channel BNC high definition video output / CVBS

video output (DIP switch)

Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual
PIR
DetectionPassive infrared
Detection RangeMax. 15m, 110°
Alarm promptWhitelight & Siren
Installation heightDefualt bracket, wall mount, 2.2-2.5m
IoT Features
Wireless Frequency433/868/915Mhz
Wireless ProtocolAirfly
Device ConnectionUp to 32 wireless devices connection
Wireless Transmission DistanceUp to 100m (open space/ no interference)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio InterfaceBuilt-in mic & 1 ch audio in interface
Alarm Interface1 ch alarm out interface
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 5.5W (12V DC, IR on)
Environmental
Operating Conditions-20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -20°C (-4°F)

Storage Conditions-20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH
Ingress Protection &Vandal ResistanceIP67
Construction
CasingPlastic (Body) + Aluminium (Bracket)
Dimensions144.7mm×76.7mm×146.4mm (5.70″×3.02″×5.76″)
Net Weight0.41kg (0.90lb)
Gross Weight0.55kg (1.21lb)
