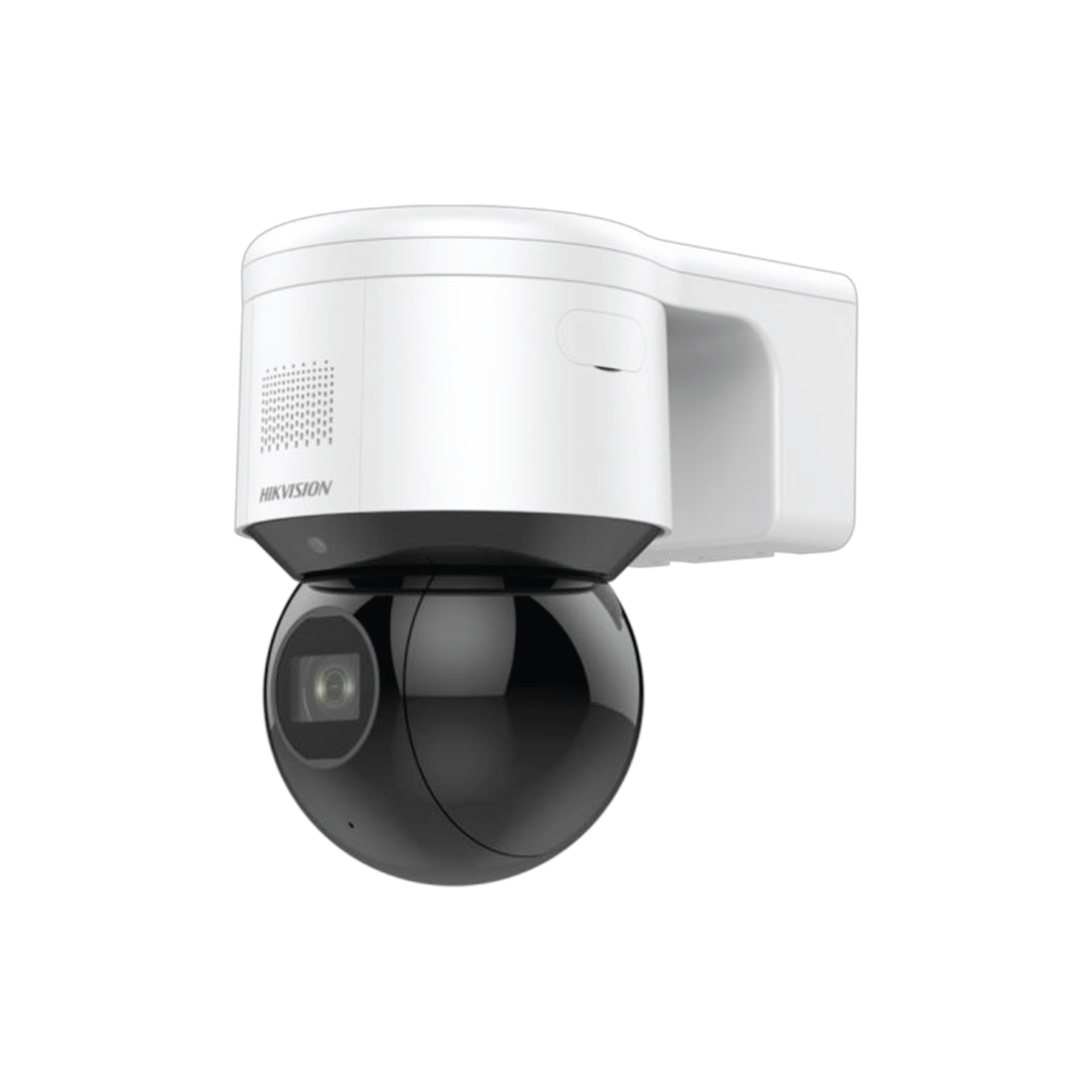

Hikvision DS-2DE3A204IW-DE/W

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 4x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 50 m IR range ensures safety at night
  • Up to 30 m white light distance
  • Support audio visual alarm

Description

  • Lens
  • FOVHorizontal field of view: 100.5° to 32.6° (wide-tele) ,Vertical field of view: 52.8° to 18.3° (wide-tele) ,Diagonal field of view: 120.2° to 37.5° (wide-tele)
  • Zoom SpeedApprox. 2 s (optical lens, wide-tele)
  • Working Distance10 mm to 1500 mm (wide-tele)
  • Aperture RangeF1.5 to F2.7
  • Focal Length2.8 to 12 mm, 4 × optical zoom
  • Image
  • Image Enhancement1/2.8" progressive scan CMOS
  • Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Network
  • Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
  • Simultaneous Live ViewUp to 20 channels
  • User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
  • Web BrowserIE 8-11,Chrome 31+, Firefox 30+, Microsoft Edge 41.16299.726.0
  • Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Interface
  • Alarm Output1-ch alarm output
  • Alarm Input1-ch alarm input
  • Audio Input1-ch audio input
  • Audio Output1-ch audio output
  • Network Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
  • Compression Standard
  • H.264+Support
  • H.265+Support
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Video Bitrate32 kbps to 16384 kbps
  • Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
  • Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
  • SVCSupport
  • Camera Module
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
  • Shutter Time1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Digital Zoom16×
  • Privacy Mask24 programmable privacy masks, mask color configurable
  • Focus ModeAuto/Semi-automatic/Manual
  • WDR120 dB WDR
  • Supplement Light
  • IR DistanceUp to 50 m
  • PTZ
  • Movement Range (Pan)0° to 350°
  • Pan SpeedConfigurable, from 0.1°/s to 60°/s. Preset speed: 65°/s
  • Movement Range (Tilt)0° to 90°
  • Tilt SpeedConfigurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
  • Proportional ZoomSupport
  • Presets300
  • Patrol ScanNo
  • Pattern ScanNo
  • Power-Off MemorySupport
  • Park ActionPreset
  • PTZ Status DisplayON/OFF
  • Preset FreezingSupport
  • Scheduled TaskPreset/Dome Reboot/Dome Adjust/Aux output
  • Smart Features
  • Basic Event DetectionMotion detection, video tampering detection, alarm input, alarm output, exception (HDD full, HDD error, illegal login, network disconnected, IP address conflict)
  • Smart DetectionFace detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
  • Smart TrackingANR (Automatic Network Replenishment), dual-VCA
  • ROIMain stream, sub-stream, and third stream respectively support 4 fixed areas, and dynamic face tracking.
  • General
  • MaterialADC12 + PC
  • Dimensions179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.16")
  • WeightApprox. 1.125 kg (2.48 lb.)
  • Protection LevelIP66 standard, 6000V lightning protection, surge protection and voltage transient protection
  • Power12 VDC, PoE 802.3at, max. 15 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
  • Working Temperature-30°C to 60°C (-22°F to 140°F)
  • Working Humidity≤ 90%
