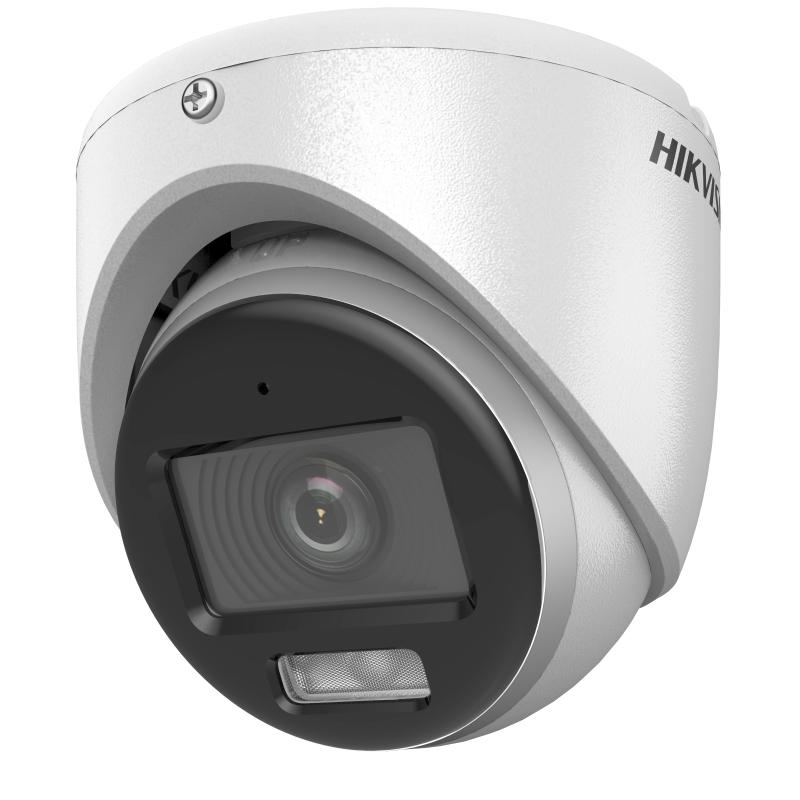

HIKVISION DS-2CE70KF0T-LMFS(2.8mm) 5MP

Description

คำอธิบาย

HIKVISION กล้องวงจรปิด 5 ล้านพิกเซล รุ่น DS-2CE70KF0T-LMFS(2.8mm)

Camera

• Image Sensor3K CMOS
• Signal SystemPAL/NTSC
• Resolution2960 (H) × 1665 (V)
• Frame Rate

  TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

  AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

  CVI: 4 MP @25 fps/30 fps

  CVBS: PAL/NTSC

• Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm fixed focal lens
• Field of View

  2.8 mm, horizontal FOV: 105°, vertical FOV: 60°, diagonal FOV: 143°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 112°

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & NightICR
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Microphone

• Pickup DistanceIn a radius of up to 5 m
• Amount1

Illuminator

• Supplement Light TypeSmart, IR, White Light
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m


• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeAuto/Color
• White BalanceAuto/Outdoor/Global/Manual
• AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Audio InBuilt-in mic

General

• Power12 VDC ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
• Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
• Protection LevelIP67
• MaterialMetal
• CommunicationHIKVISION-C
• DimensionØ85.1 mm × 77.62 mm (Ø3.35″ × 3.05″)
• WeightApprox. 330 g (0.73 lb.)

DS-2CE70KF0T-LMFS_Datasheet_20250304.pdf
