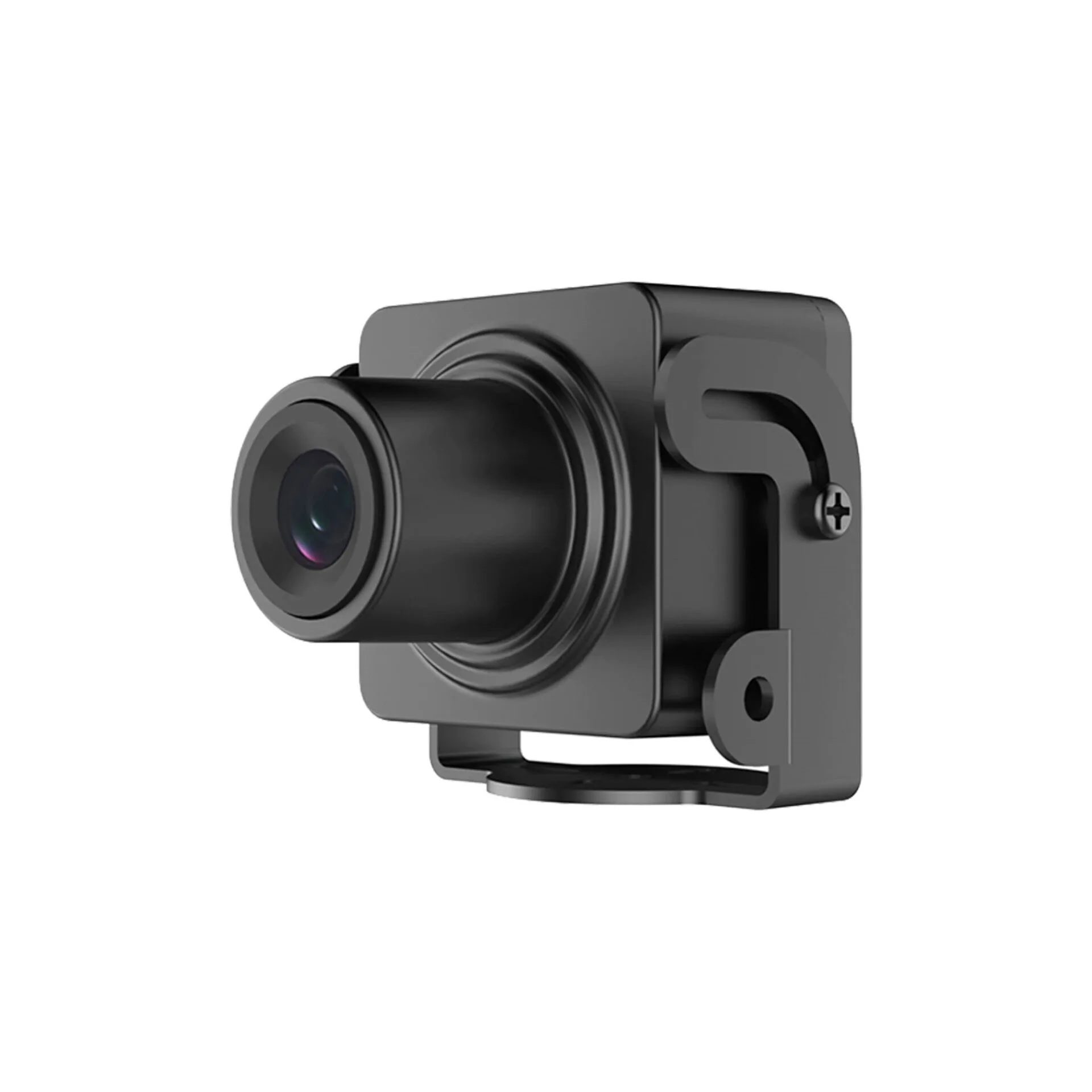

Hikvision DS-2CD2D21G0/M-D/NF

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Mini size suitable for covert installations

คำอธิบาย

  • Camera
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Min. IlluminationWithout /M model:,Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON),B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON),With /M model:,Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightElectronic
  • Wide Dynamic Range120dB
  • DNR3D DNR
  • Lens
  • LensWithout /M model: 3.7 mm,With /M model: 2.8 mm, 4 mm
  • Auto-IrisNo
  • FocusFixed
  • FOVWithout /M model: 3.7 mm,horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90°,With/M model:,2.8 mm,horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm,horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102.5°
  • Lens MountM12
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480),60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Video CompressionH.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
  • Region Of InterestSupport 1 fixed region for main stream, sub-stream and third stream
  • ExceptionScene change detection, defocus detection
  • Face DetectionYes
  • Image
  • Image Enhancement3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Network
  • Network StorageSupport NAS (NFS, SMB/CIFS)
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, IP address conflict, illegal login
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in)
  • Battery
  • Operating Condition-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Compression Standard
  • H.264+Yes
  • H.265+Yes
  • General
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Power Supply12 VDC ± 20%, Φ 5.5 mm coaxial plug power
  • Power Consumption And Current12 VDC, 0.3 A, max. 3 W
  • DimensionsWithout /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1"),With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
  • WeightWith package: approx. 202 g (0.4 lb.),Camera: approx. 93 g (0.2 lb.)
