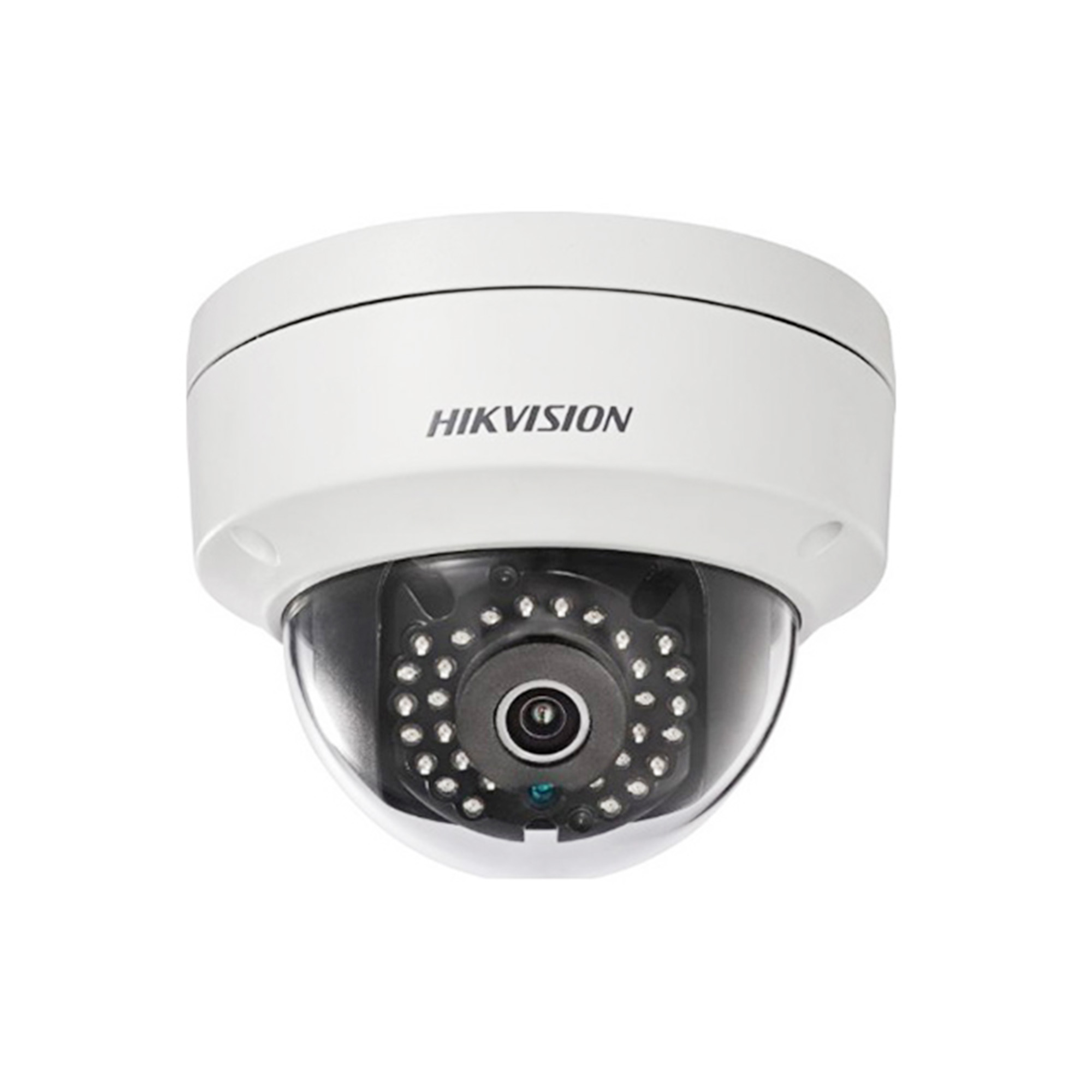

Hikvision DS-2CD1123G0E-I

1,590 ฿

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting thanks to DWDR technology
  • Water- and dust- resistant (IP67), vandal proof (IK10)

Description

  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Min. IlluminationColor: 0.028Lux @ (F2.0, AGC ON)
  • Shutter Speed1/3 s to 1/100, 000 s
  • Slow ShutterYes
  • Day &NightIR cut filter
  • Wide Dynamic RangeDWDR
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
  • DNR3D DNR
  • Lens
  • Lens2.8 mm, 4 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub stream: H.265/H.264/MJPEG

  • H.264 TypeMain Profile/High Profile/Baseline Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set
  • Region Of Interest1 fixed region for main stream
  • Image
  • Image EnhancementBLC, 3D DNR
  • Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, scheduled, day, night
  • Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • APIONVIF (PROFILE S), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator, and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering alarm, illegal login
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • General
  • Firmware VersionV5.5.83
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • MaterialFront cover: plastic, back cover & bracket: metal
  • Dimensions

    Camera: Ø 111 mm × 82.4 mm (4.4" × 3.2\")

    With package: 134 mm × 134 mm × 108 mm (5.3 × 5.3\" × 4.3\")"

  • WeightCamera: Approx. 400 g (0.9 lb.),With package: Approx. 600 g (1.3 lb.)
  • Power Consumption And Current

    Camera: Approx. 400 g (0.9 lb.)

    With package: Approx. 600 g (1.3 lb.)

  • Ingress ProtectionIP67, IK10
