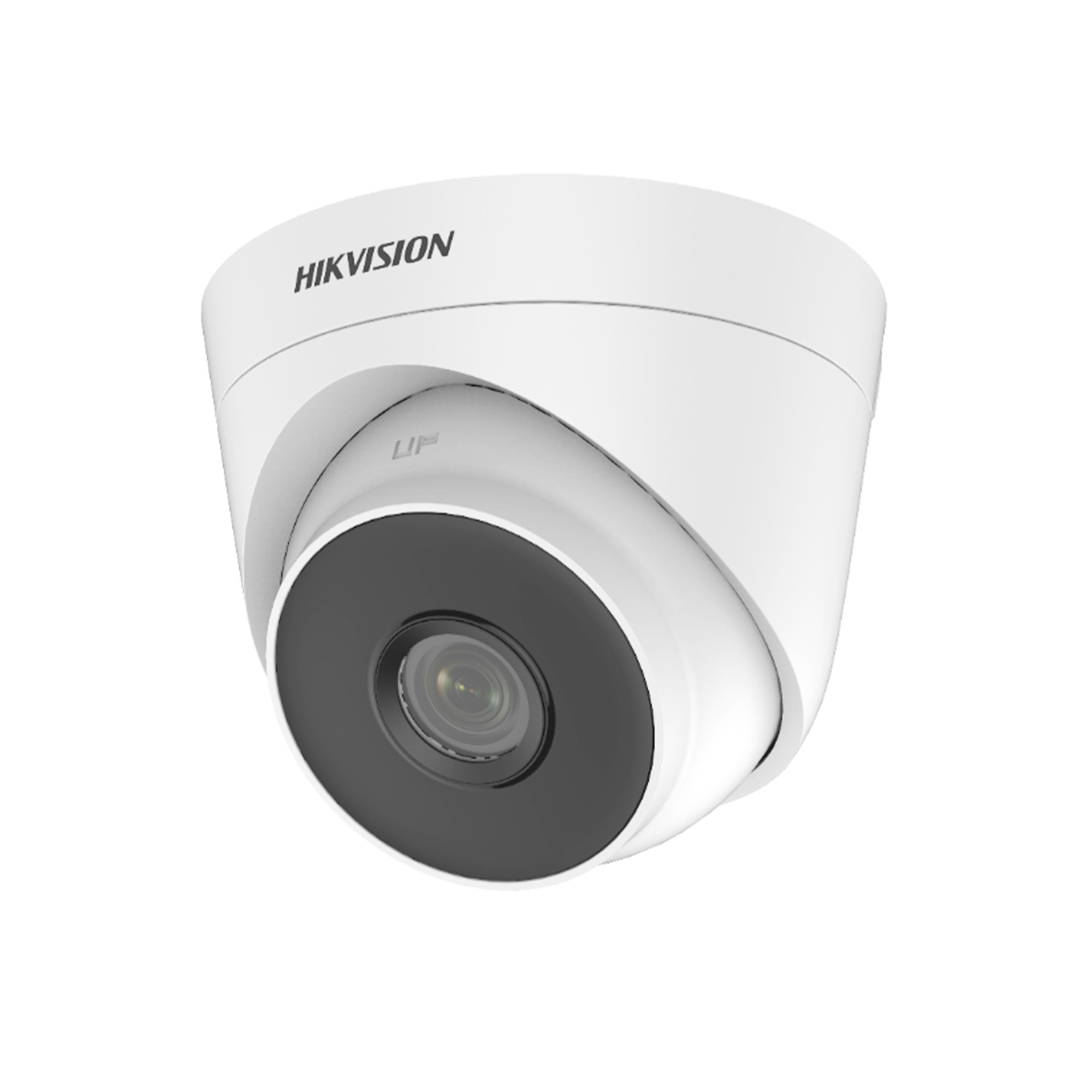

Hikvision 2MP DS-2CE56D0T-IT3F

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° 8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5° 12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°
• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: [email protected], [email protected] CVI: 1080P@30fps, [email protected] AHD: [email protected], [email protected] CVBS: PAL/NTSC
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialPlastic
• DimensionΦ 110 mm × 93.2 mm (Φ 4.33" × 3.67")
• WeightApprox. 211 g (0.47 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25%
• ConsumptionMax. 3 W
• IR RangeUp to 40 m

• Approval
• ProtectionIP67
