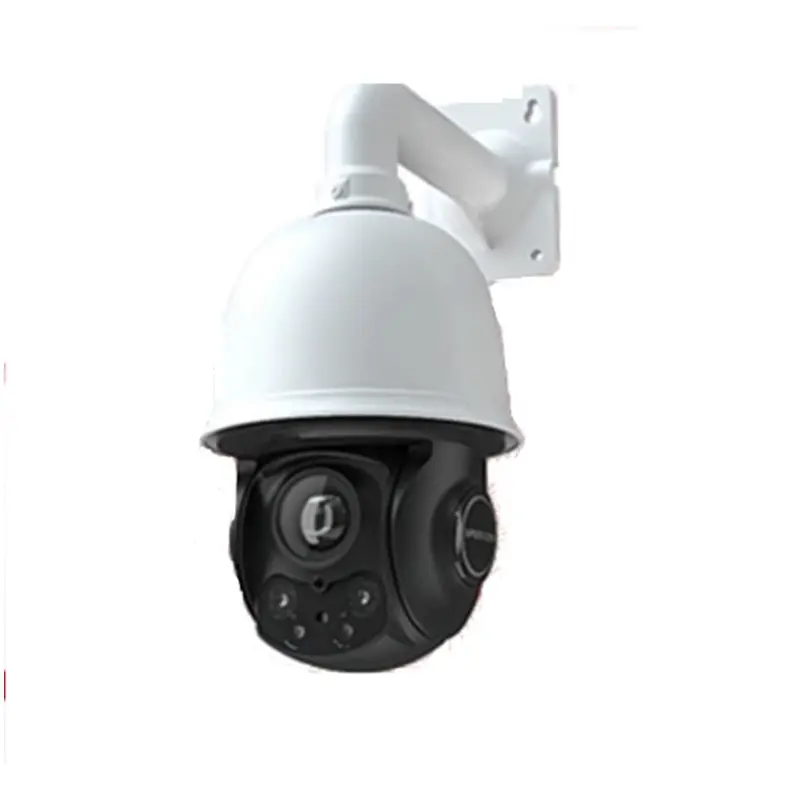

Hi-view HP-9632 3MP

  • Solution 1/28″ SONY IMX124+HI3516D
  • Resolution 3.0MP
  • Optical zoom 20X F=5.5-110mm./ F1.6-F3.5
  • Support Auto focus
  • Support SD Card Max. 128GB.
  • Alarm input x1 / Alarm output x1
  • Network RJ45 x1 (10/100Mbps)
  • Mic input x1 / Speaker output x1
  • Support 2-way-audio
  • Support Menu OSD (Preset 95)
  • Support App SuperlivePlus, NVMS-1000, NVMS-5000
  • Support Brewers IE11 (Live view, Search. Config)
  • Power supply AV24V. /300mA.
  • Protection Level IP66
  • Weight 3.5Kg.

Description

Download DataSheet HP-9632

Specification (1)
Solution1/28″ SONY IMX124+HI3516D
Resolution3.0MP
Optical zoom20X F=5.5-110mm./ F1.6-F3.5
SupportAuto focus
Min. lllumniation0 Lux
SupportIR Array 5Pcs. / IR Smart
IR Distance100M.
Video compressionH.264 / H.265
Main Stream2048×1536, 1920×1080, 1280×720 @25fps, CBR/VBR, Bitrate 512-8192, H.264/H.265.
Sub Stream704×576, 352×288, @25fps, CBR/VBR, Bitrate 128-2048, H.264/H.265/JPEG
Third Stream704×576, 352×288, 480×240 @25fps, CBR/VBR, Bitrate 128-2048, H.264/H.265/JPEG
Stream snapshot1@248×1536, 2@704×576, 3@352×288
SupportPAL/NTSC 50Hz/60Hz
S/N Ratio Max48dB.
Support SD Card Max.128GB.
Alarm inputx1
Alarm outputx1
Network RJ45x1 (10/100Mbps)
Mic inputx1
Speaker outputx1
Support2-way-audio
SupportMenu OSD (Preset 95)
SupportApp SuperlivePlus, NVMS-1000, NVMS-5000
SupportBrewers IE11 (Live view, Search. Config)
SupportCamera temp. checking
Onvif version2.3
Support IRon/off adjustable (Via IE)
Support Day & Night(Auto, Day, Night, Timing)
Support IR Sensitivity adjustable(Low, Mid, High, Custom)
Pan Range360 ํ
Pam Speed160 ํ/s., Manual control speed 0.5-90 ํ/s
Tile Range255, Cruise 8, Track 4, Scan 2, Home position
Tile Speed preset Speed160 ํ/s., Manual control speed 0.5-90 ํ/s
Preset255, Cruise 8, Track 4, Scan 2, Home position
Specification (2)
SupportSmart 3D zoom
SupportFocus limit (30Cm. 1M, 1.5M, 2M, 3M, 5M, 10M)
SupportCamera initial
SupportAuto PTZ flip
SupportPreset, Cruise, Group, Trace, Task, Alarm, Home Position
SupportScan
SupportMotion Alarm (Area and sensitivity adjustable, Motion Schedule)
SupportMotion Alarm Triggering (Alarm out, Snap, Email, FTP)
SupportAlarm input x1 (NO/NC), (Alarm input schedule)
SupportAlarm output (Alarm holding time)
SupportAlarm server
SupportIP change notification
Supportonline user
SupportBLC (Enavle/Disable)
Support3D DNR (Auto/Low/Middle/High)
Supportdefog (Level 1-4)
Supportcolor adjustable (Color level, Brightness, Sharpness)
SupportWhite balance (Auto, Indoor, Outdoor, Manual)
SupportAE Mode (Auto, Bright, Shutter, Iris)
SupportAGC (Level 0-15)
SupportMirror (Disable, Mirror, Rota, Flip)
SupportUser management
SupportBlock and allow lists (IP filtering, MAC filtering)
SupportConfig import/Export setting
SupportOnline upgrade
SupportLOG (Search, Export)
SupportDDNS (88ip, dns2P, meibu, dyndns, no-ip, dvrdydns, mintdns, and 123ddns)
SupportProtocol NTP, TCP IPv4, PPPoE, DDNS, SNMP, RTSP, UPnP, Email, FTP
Power SupplyAV24V. / 300mA.
Power consumption15W. (Max 30W. IR ON)
Working EnvironmentTemp. -20 ํC~+60 ํC, Humidity less tham 95%
Protection LevelIP66
Lighting protectionTVS6KV, surge protection
Weight / Dimension3.5 Kg. / Ꝋ209×317
