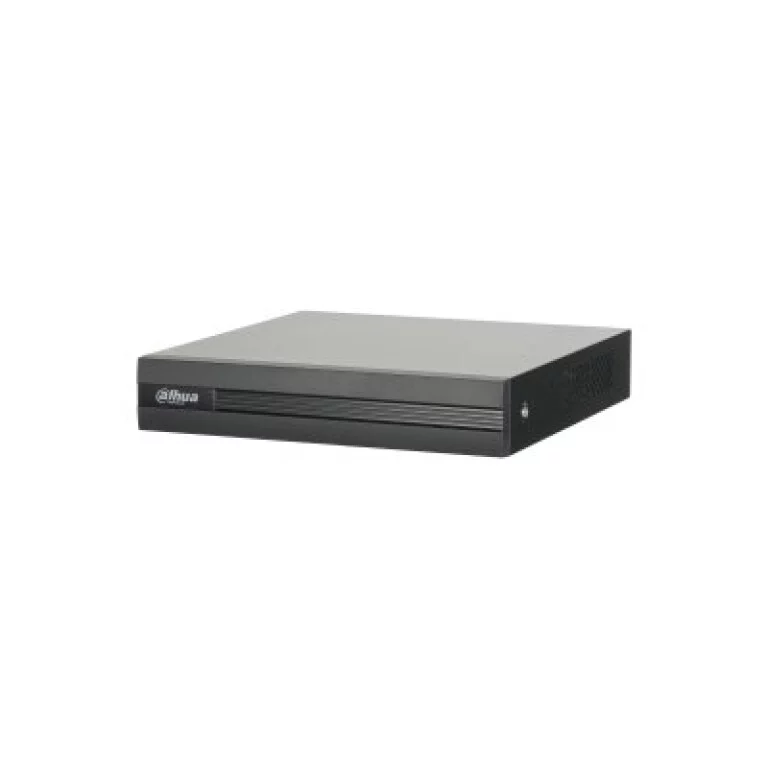

Dahua XVR1B08H

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6/12 channels IP camera inputs, each channel up to 6MP; Max 24/48Mbps incoming bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
> Smart Search and Intelligent Video System



รายละเอียดเพิ่มเติม

Download DataSheet XVR1B08H

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video and Audio
Analog Camera Input4/8 Channel, BNC
HDCVI Camera5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Input4+2/8+4CH, each channel up to 6MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
Video CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record RateMain Stream: 5M-N(1~10fps);4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)

Sub stream:D1/CIF (1~15fps)

Video Bit Rate32Kbps ~ 6144Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio CompressionG.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface1 HDMI ,1 VGA
Resolution1920×1080, 1280×1024, 1280×720
Multi-screen DisplayWhen IP extension mode not enabled:

4CH: 1/4

8CH: 1/4/8/9

When IP extension mode enabled:

4CH: 1/4/6

8CH: 1/4/8/9/16

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface1 RJ-45 Port (100M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback4CH: 1/4

8CH: 1/4/9

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD1 SATA Port, up to 6TB capacity
eSATAN/A
Auxiliary Interface
USB2 USB 2.0
RS232N/A
RS485N/A
Electrical
Power SupplyDC12V/1.5A
Power Consumption

(Without HDD)

<10W
Construction
DimensionsCooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Net Weight

(without HDD)

0.54kg (1.19lb)
Gross Weight1kg (2.2lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
CertificationsFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
