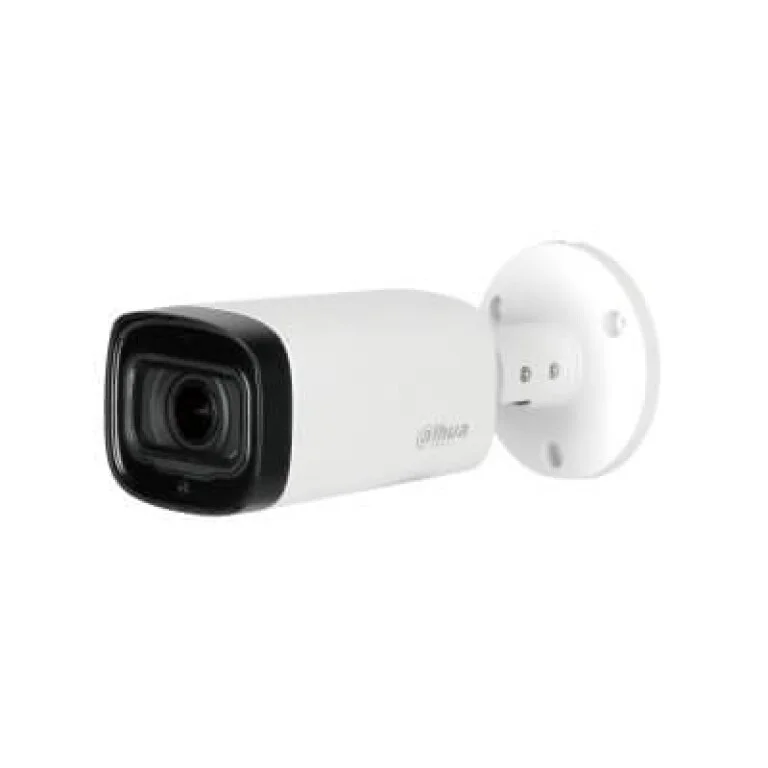

กล้องวงจรปิด Dahua HAC-HFW1400R-Z-IRE6-POC 4MP

* The parameters and datasheets below can only be applied to 1400-S2 series.
> Max 30fps@4MP
> HD and SD output switchable
> 2.7-12mm Motorized lens
> Max. IR length 60m, Smart IR
> IP67, POC/DC12V

HAC-HFW1400R-Z-IRE6-POC
HAC-HFW1400R-Z-IRE6-POC







คำอธิบาย

Download DataSheet HAC-HFW1400R-Z-IRE6-POC

Camera

Image Sensor

1/2.7″ CMOS

Effective Pixels

2560(H)×1440(V), 4MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.03Lux/F1.8, 30IRE, 0Lux/F1.8 (IR On)

S/N Ratio

More than 65dB

IR Distance

Up to 60m (197feet)

IR On/Off Control

Auto / Manual

IR LEDs

4

Lens

Lens Type

Motorized lens / Fixed iris

Mount Type

Board-in

Focal Length

2.7-12mm

Max Aperture

F1.8

Angle of View

H: 92°~29°

V: 49°~16°

Focus Control

Motorized

Close Focus Distance

800mm

31.50”

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 87°

Rotation: 0° ~ 360°

Video

Resolution

4MP (2560×1440)

Frame Rate

25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

67m(220ft)

198m(650ft)

Observe

63px/m (19px/ft)

27m(89ft)

79m(259ft)

Recognize

125px/m (38px/ft)

13m(43ft)

39m(128ft)

Identify

250px/m (76px/ft)

7m(22ft)

19m(62ft)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

POC/12V DC ±30%

Power Consumption

POC/Max 7.1W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

209.9mm×90.4mm×90.4mm (8.26″×3.56″×3.56″)

Net Weight

0.57kg (1.26lb)

Gross Weight

0.74kg (1.63lb)
