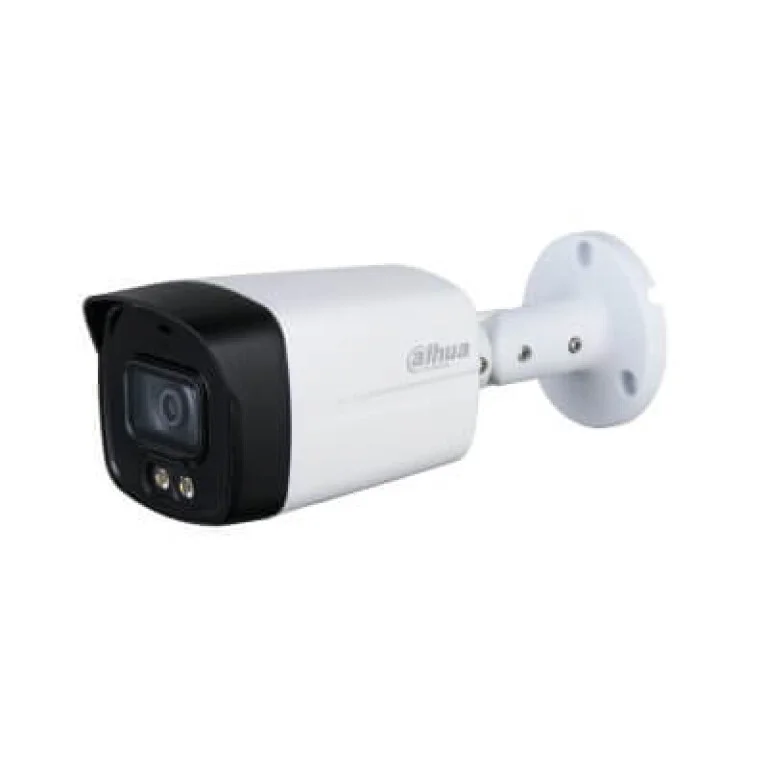

กล้องวงจรปิด Dahua HAC-HFW1239TLM-A-LED 2MP

> Full-color starlight
> 40m LED distance
> Max. 30fps@1080P
> CVI/CVBS/AHD/TVI Switchable
> Built-in mic(-A)
> 3.6mm fixed lens (2.8mm Optional)
> IP67, 12V±30% DC

HAC-HFW1239TLM(-A)-LED
HAC-HFW1239TLM(-A)-LED







คำอธิบาย

Download DataSheet HAC-HFW1239TLM-A-LED

Camera
Image Sensor1/2.8 inch 2.16 Mega Pixels CMOS
Effective Pixels1920 (H)×1080 (V), 2MP
Electronic Shutter SpeedPAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux white Light on
Fill Light (White Light) DistanceDistance up to 40m (131.23ft)
Fill Light On/Off ControlAuto; Manual
Fill Light Number2
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8m/3.6mm
Max. ApertureF1.6
Angle of View2.8mm:

126.2°×106.0°×56.5° (diagonalxhorizontalxvertical)

3.6mm:

103.6°x86.9°x46.3° (diagonalxhorizontalxvertical)

Iris TypeFixed iris
Close Focus Distance2.8mm: 0.6m (1.97ft)

3.6mm: 1.2m (3.94ft)

DORI DistanceLensDetectObserveRecognizeIdentify
2.8mm38.6m (126.6ft)15.4m (50.5ft)7.7m (25.3ft)3.9m (12.8ft)
3.6mm55.2m (181.1ft)22.1m (72.5ft)11.0m (36.0ft)5.5m (18.0ft)
Video
Video Frame RateCVI:

PAL: 1080@25fps, 720@25fps, 720@50fps;

NTSC: 1080@30fps, 720@30fps, 720@60fps

AHD: PAL: 1080@25fps,720@25fps;

NTSC: 1080@30fps,720@30fps

TVI: PAL: 1080@25fps,720@25fps,720@50fps;

NTSC: 1080@30fps,720@30fps,720@60fps

CVBS: PAL: 960×576H;

NTSC: 960×480H

Resolution1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480)
BLCBLC/HLC/WDR
WDRDWDR
White BalanceAuto; Manual
Gain ControlAuto; Manual
Noise Reduction2D NR
Smart LightYes
Electronic DefogYes
Digital Zoom16X
MirrorOff/On
Privacy MaskingOff/On (4 area, rectangle)
Certification
CertificationsCE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio InterfaceBuilt-in mic(-A)
Port
Video PortVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply12V ±30% DC
Power ConsumptionMax 5W (12V DC, white light on)
Environment
Operating Temperature-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Storage Temperature-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Protection GradeIP67
Structure
CasingMetal front cover+plastic main body+metal bracket
Dimensions198.4mm×80.2mm×76.2mm (7.81″×3.16″×3.00″)
Net Weight0.3Kg(0.66lb)
Gross Weight0.45Kg(0.99lb)
