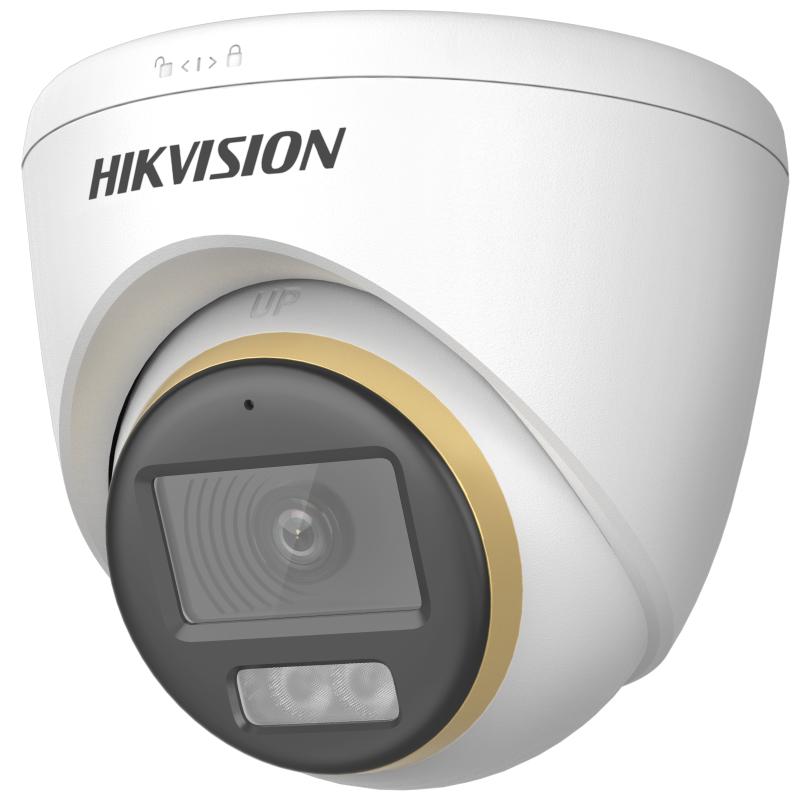

Hikvision DS-2CE72DF3T-LFS HDTVI 2MP

Description

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times

Lens

• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

  3.6 mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°

• Lens MountM12

Microphone

• Pickup DistanceIn a radius of up to 5 m
• Amount1

Illuminator

• Supplement Light TypeSmart, IR, White Light
• Supplement Light RangeIR: Up to 40 m, White Light: Up to 40 m


• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image Settings

  Brightness,

  Contrast,

  Sharpness,

  Anti-banding,

  AGC

• Frame Rate

  TVI: 1080p @25 fps/30 fps

  CVI: 1080p @25 fps/30 fps

  AHD: 1080p @25 fps/30 fps

  CVBS: PAL/NTSC

• Wide Dynamic Range (WDR)≥130 dB
• Image Enhancement

  WDR,

  BLC,

  HLC,

  Global,

  HLS

• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR
• White Balance

  Auto,

  Manual

• Day/Night ModeAuto/Color

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AlarmSolid Light Alarm(White Light)

Event

• Motion Detection4 programmable motion areas

General

• MaterialMain body: Metal, Enclosure: Plastic
• DimensionØ109.98 mm × 98.27 mm (Ø4.33″ × 3.87″)
• WeightApprox. 340 g (0.75 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power

  12 VDC ± 25%, max. 6.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

Approval

• ProtectionIP67

DS-2CE72DF3T-LFS_Datasheet_20241211.pdf
