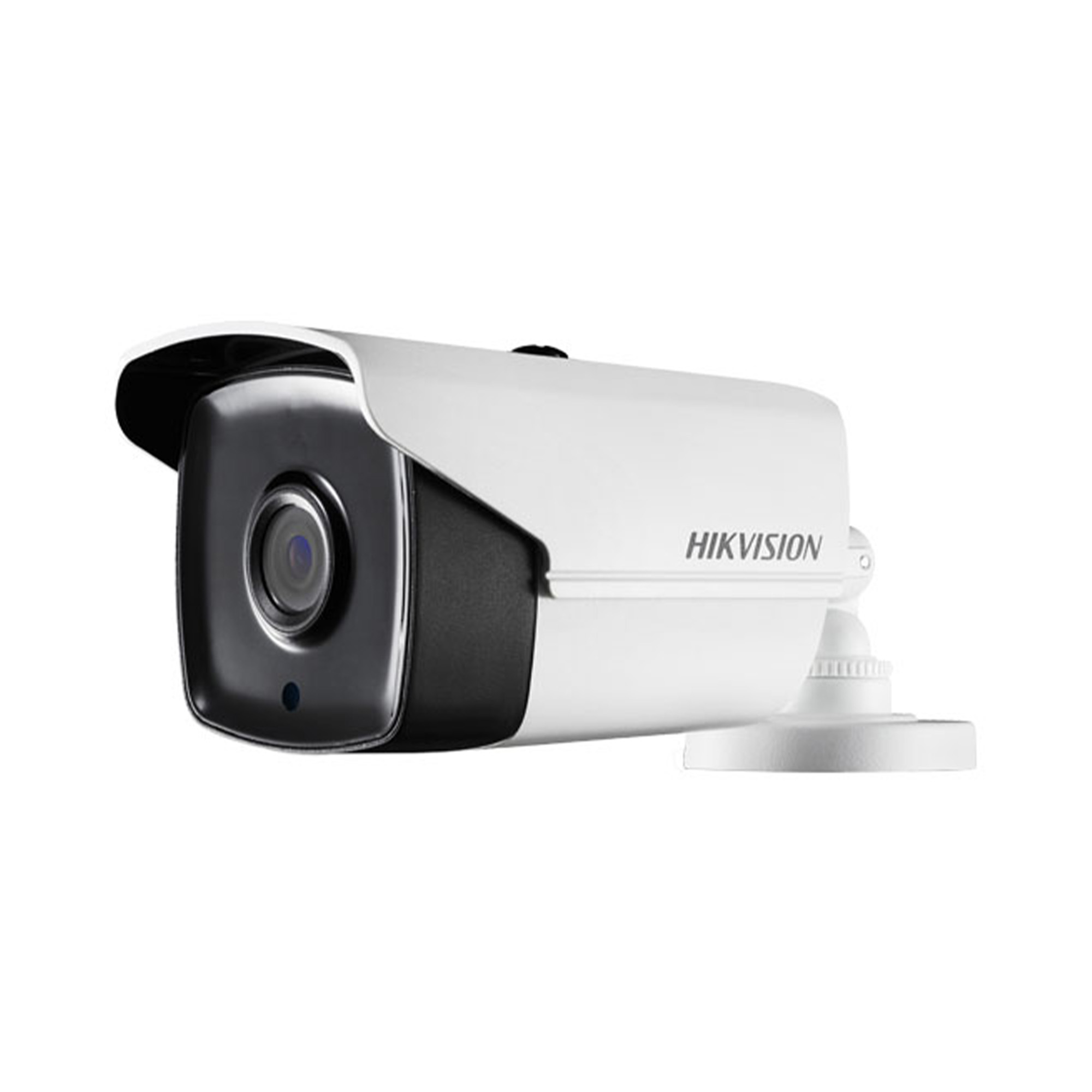

Hikvision 2MP DS-2CE16D8T-IT5F

  • 2 MP high performance bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 80 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
                                DS-2CE16D8T-IT5F

คำอธิบาย

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time

    PAL: 1/25 s to 1/50, 000 s

    NTSC: 1/30 s to 1/50, 000 s

  • Day & NightICR
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOV79.1° (3.6 mm), 50.2° (6 mm), 38.7° (8 mm), 24.2° (12 mm)
  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR, HLC
  • Frame Rate

    PAL: 1080p@25fps

    NTSC: 1080p@30fps

  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • Dimension81.6 mm × 86.7 mm × 226 mm (3.2" × 3.4" × 8.9")
  • WeightApprox. 560 g (1.23 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • LanguageEnglish
  • Power Supply12 VDC ± 25%
  • Consumption

    Max. 5.2 W

  • IR RangeUp to 80 m
  • Approval
  • ProtectionIP67
