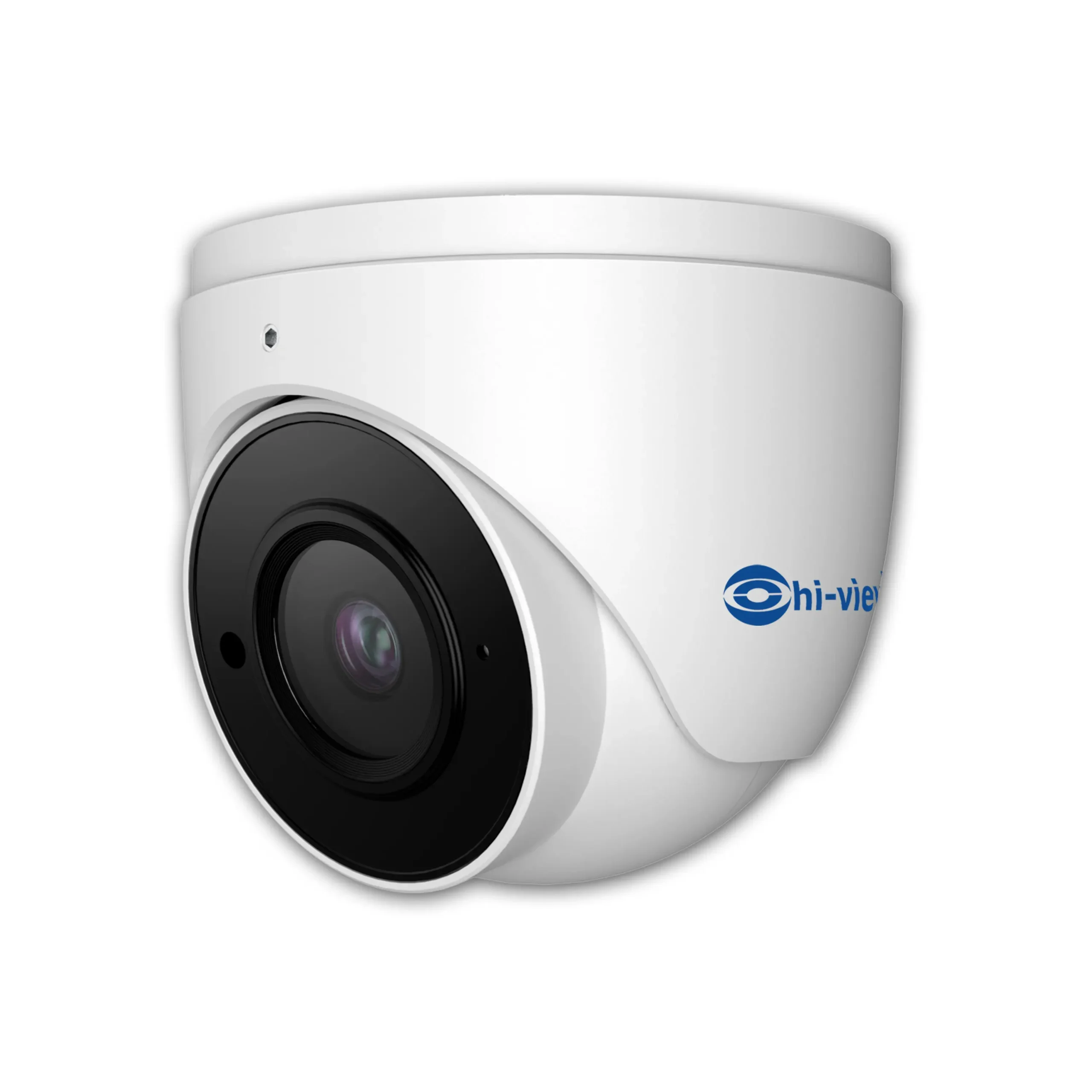

Hi-view HP-97D50PE 5MP
- 1/2.7″ Smartsens CMOS progressive scan
- 2592(H)x1944(V), 5.0MP
- H.265, H.264, Triple stream
- Fixed lens 2.8mm/M12
- IR Array LED x1 Array, Distance 20-30M.
- IR CUT (IR Filters)
- WDR, DEFOG, BLC, HLC, 3D-DNR
- Email alarm, Motion alarm, FTP alarm
- Protection Level IP67
- Mic-Built-in x1, RJ45 x1 (100 Mbps)
- Power supply 12VDC / POE (IEEE802.3af)
คำอธิบาย
| Model | HP-97D50PE |
| Image Sensor | 1/2.7″ Smartsens SC5238 CMOS progressive scan |
| CPU | NT98513 |
| Pixels | 5MP |
| Min.lllumination | 0.0236 [email protected]< AGC ON, 0 lux with IR
0.0085 [email protected], AGC ON, 0 lux with IR |
| Lens | |
| Mount Type | M12 |
| Focal Length | 2.8mm. |
| Iris Type | Fixed iris |
| Horizontal Field of View | 93.4ํ |
| Infrared | |
| Day / Night Mode | Auto/day/night/timing |
| IR-CUT Filter | Supported |
| IR Array LED | x1 Array |
| IR Array Distance | 20-30M. |
| Infrared Mode | Auto/on/off |
| Smart IR | Supported (On/Off) |
| Display | |
| Image Parmeter | 3 type (common,day, night) and schedule setting |
| Brihtness Adjust | Supported |
| Contrast Adjust | Supported |
| Hue Adjust | Supported |
| Saturation Adjust | Supported |
| Sharpness Adjust | Supported |
| Noise Reduction | Supported 3D DNR |
| Defog | supported |
| WDR | Supported |
| BLC | Supported |
| HLC | Supported |
| Anti-Filcker | Supported 50Hz/60Hz |
| White Balance | Supported (Auto/indoor/outdoor/manual) |
| Frequency | Supported 50Hz/60Hz |
| Exposure Mode | Supported auto/manual (1/25s-1/100,000s) |
| Gain | Supported |
| Image Mirror | Supported |
| Image Flip | Supported |
| Backlight Compensation | Supported |
| E-zoom | Supported |
| Images | |
| Video Compression | H.265,H.264 |
| Audio Compression | G711A, G711U |
| Compression Standard | Base line, Main Profile, High Profile |
| Stream | Triple stream |
| Image Resolution | Main stream 2592×1944, 2560×1440, 1920×1080, 1280×720
Sub stream 1280×720, 704×576, 352×288 Third stream 704×576, 480×240, 352×288 |
| Image Frame Rate | Main stream 259×1944@20fps(PAL),2560×1440@25fps(PAL),
1920×1080@25fps(PAL),1280×720@25fps(PAL) Sub steam 1280×720@12fps(PAL), 704×576@25fps(PAL), Third steam 704×576@25fps(PAL), 480×240@25fps(PAL), |
| Bit Rate | 128 Kbps – 5 Mbps |
| Video Encode Slice Split | Supported |
| Water Mark | Supported |
| OSD | Supported |
| Date and Time | Supported DST, NTP, synchroniza with PC,manual |
| Video Mask | Supported (Max. 4 areas) |
| ROI | supported (Max. 3 areas) |
| Alarm | |
| Motion | Supported |
| Motion Sensitivity | Supported |
| Motion Schedule Setting | Supported |
| Motion Alarm Triggering | Email/FTP |
| Alarm Server | Supported |
| Network | |
| Network Protocols | IPv4, IPv6, PPPoE, HTTP, HTTPS, DNS, 802.1X, RTSP, UPNP, SMTP, FTP, QoS, ONVIF, DST, NTP |
| Test IP Address Function | Supported |
| DDNS Protocol | autoddns.com/88ip.net/dns2p.net/meibu.com/dyndns.com/no-ip.com/dvrdydns/mintdns/123ddns.com |
| Free DDNS | www.autoddns.com, dvrdydns, Etc. |
| Application Programming | ONVIF profile S |
| Online Connection | Support simultaneous monitoring for up to 6 users |
| User Interface | IE 11,NVMS2.0, APP (Superliveplus) |
| Security | |
| User Account Managent | Supported |
| IP/MAC Address Filter | Support (black and white list) |
| Locking Once lllegal Login | Supported |
| Online User Checking | Supported Kick-off |
| Maintenance | |
| Backup and Restore | Supported export/import setting, load default |
| Reboot | Supported time/date schedule |
| Syatem Upgrade | Supported |
| Log Serach | Supported export log |
| Interfaces | |
| RJ45 | x1 (Speed 100Mbps), POE |
| Mic Built-in | x1 |
| Power lnput | x1 (DC jack) |
| Environmental | |
| Operating Temperature | -30ํC -+60ํC (-22ํF-140ํF) |
| Operating Humidity | 95% or less (non-condensing) |
| Water-Proof | IP67 |
| Electrical | |
| Power Supply | 12V DC +- 10% / PoE (IEEE802.3af) |
| Power Consumption | IR Off:26mA/2.6W, IR On:38mA/5W |
| Mechanical | |
| Weight | Approx.0.45KG |
| Dimensions |
