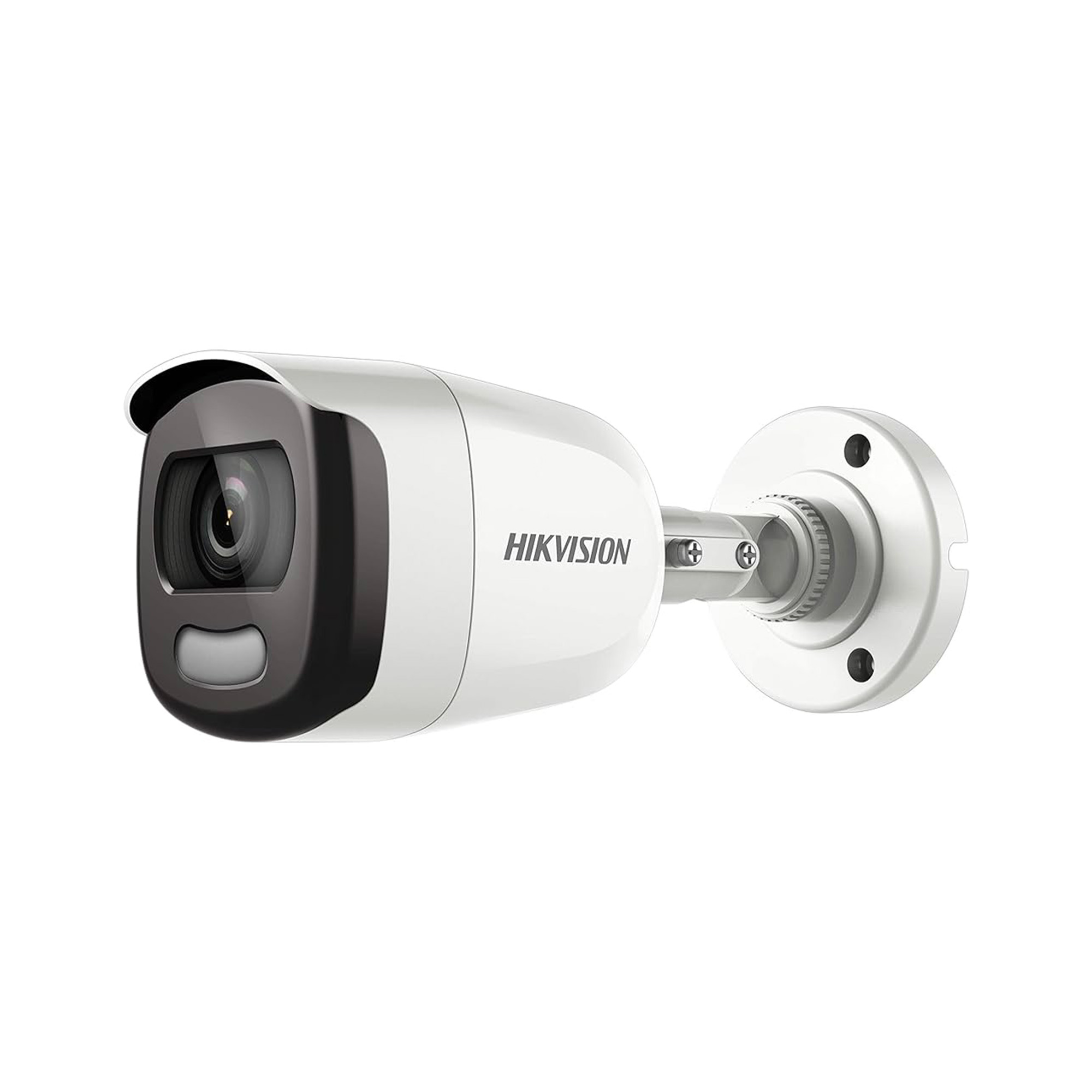

Download DataSheet DS-2CE10DFT-F
| Camera |
|---|
| Image Sensor: | | 2MP CMOS Image Sensor | | Signal System: | | PAL/NTSC | | Effective Pixels: | | 1920(H)*1080(V) | | Shutter Time: | | 1/25(1/30) s to 1/50,000 s | | Lens Mount: | | M16 | | Adjustment Range: | | Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° | | Day& Night: | | Color | | Video Frame Rate: | | 1080p@25fps/1080p@30fps | | HD Video Output: | | 1 Analog HD output | | Synchronization: | | Internal Synchronization | | Up the Coax: | | Support |
| Menu |
|---|
| Auto White Balance: | | Auto/MWB | | BLC: | | Support | | AGC: | | Support |
| General |
|---|
| White Light: | | Up to 20 m | | Operating Conditions: | | -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing) | | Power Supply: | | 12 VDC±25% | | Weather Proof: | | IP67 | | Communication : | | Up the coax
Protocol: HIKVISION-C(Coaxitron) | | Dimension: | | 181.4 mm × 70 mm × 68 mm (7.14″ × 2.75″ × 2.68″) | | Weight: | | Approx. 390 g (0.86 lb.) |
|
