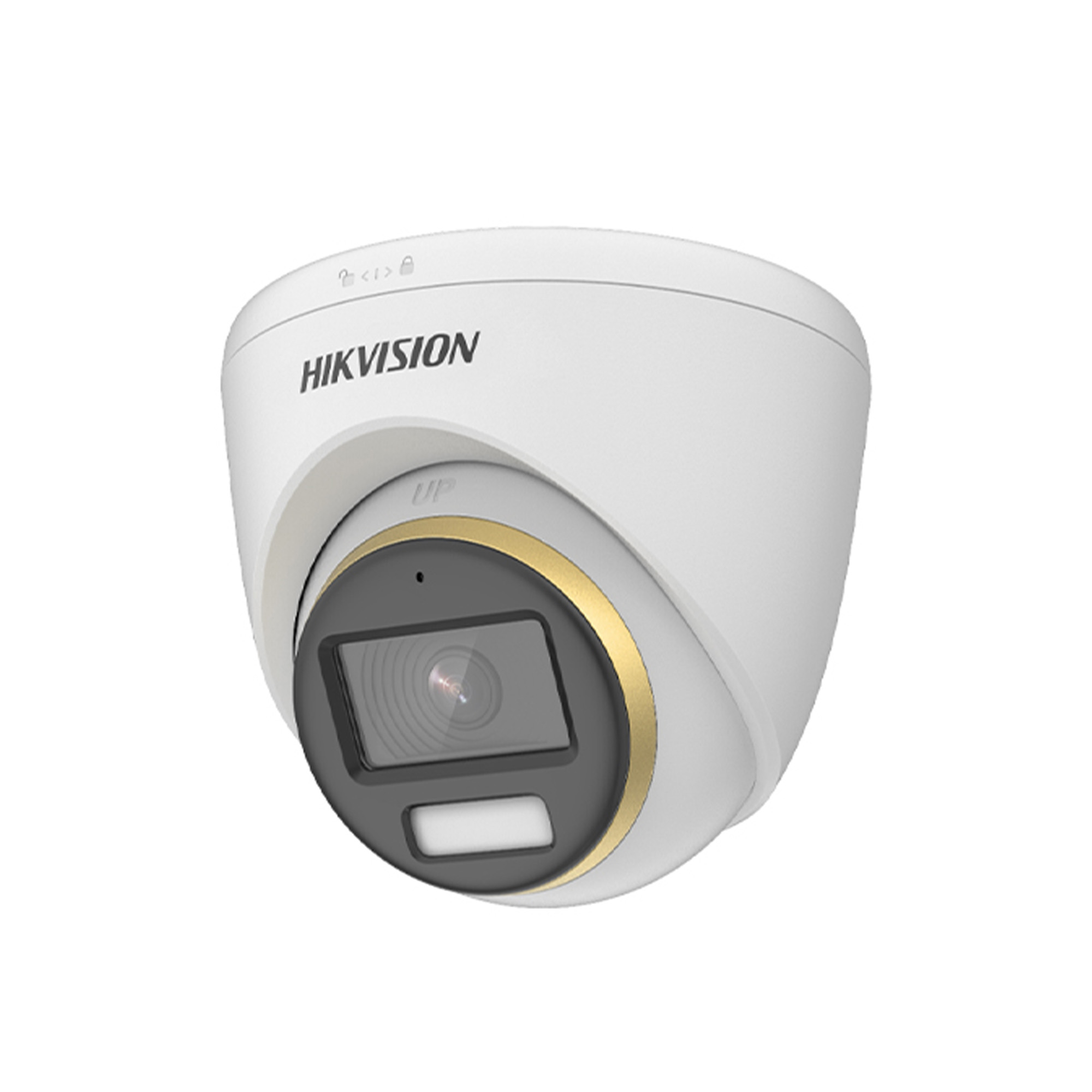

Hikvision 2MP DS-2CE72DF3T-FS

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Resolution1920 (H) × 1080 (V)
• Frame Rate

  TVI: 1080p @ 25 fps/30 fps

  CVI: 1080p @ 25 fps/30 fps

  AHD: 1080p @ 25 fps/30 fps

  CVBS: PAL/NTSC

• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Slow ShutterMax. 16 times
• Lens2.8 mm, 3.6 mm fixed focal lens
• Field Of View

  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

• Lens MountM12
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)≥130 dB
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Motion Detection4 programmable motion areas
• Noise Reduction3D DNR/2D DNR
• LanguageEnglish
• FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Audio InBuilt-in mic

• General
• Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ± 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 4.4 W
• Protection LevelIP67
• MaterialMain body: Metal, Enclosure: Plastic
• White Light RangeUp to 40 m
• CommunicationHIKVISION-C
• DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
• Approx. 336 g (0.74 lb.)
