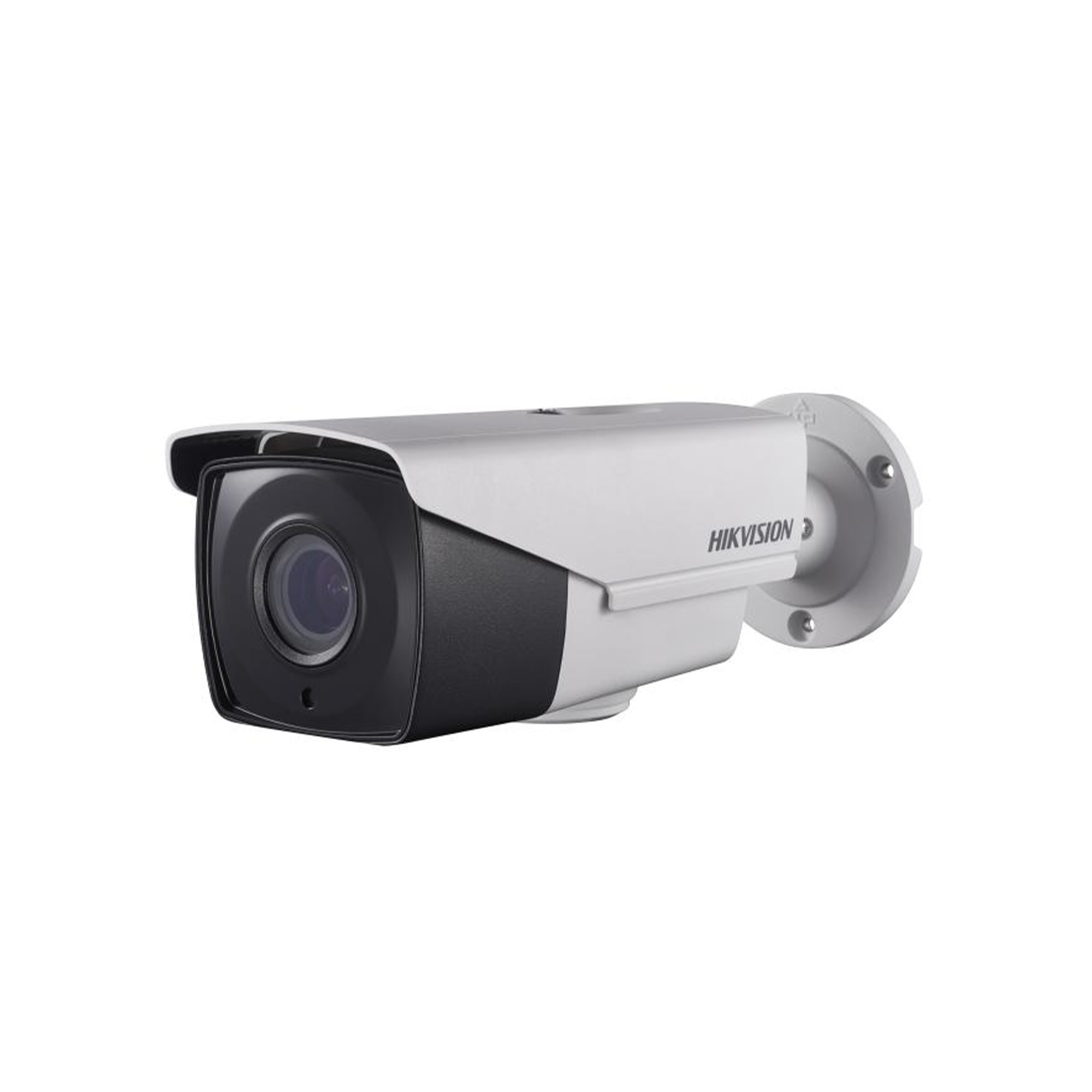

Hikvision 2MP DS-2CE16D8T-IT3ZE

Hikvision 2MP DS-2CE16D8T-IT3ZE - Image 2

Hikvision 2MP DS-2CE16D8T-IT3ZE

2 MP high performance bullet camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
Lens focuses automatically when zooming in or out
EXIR 2.0: advanced infrared technology with 80 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

Add to wishlist

หมวดหมู่: - กล้องวงจรปิด, HIKVISION, Hikvision HDTVI 2MP, ระบบ ANALOG

คำอธิบาย

คำอธิบาย

Download DataSheet DS-2CE16D8T-IT3ZE

Camera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax.: 16 times
Lens
Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
Focal Length & FOV32.1° to 103°
Lens MountΦ14
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)> 120 dB
Image EnhancementWDR/BLC/OFF
Privacy MaskON/OFF, 4 programmable privacy masks
Noise ReductionLevel 1 to 10
White BalanceATW/MANUAL
AGCSupport
Interface
Video OutputTVI only
Event
Motion Detection4 programmable motion areas
General
MaterialMetal & Plastic
Dimension92 mm × 89 mm × 269.6 mm (3.62" × 3.5" × 3.34")
Approx. 900 g (1.98 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish, Chinese
Power Supply12 VDC ±25%/PoC.at
ConsumptionMax. 8.2 W
IR RangeUp to 80 m
Approval
ProtectionIP67
