XVR7208/16A-4KL-X

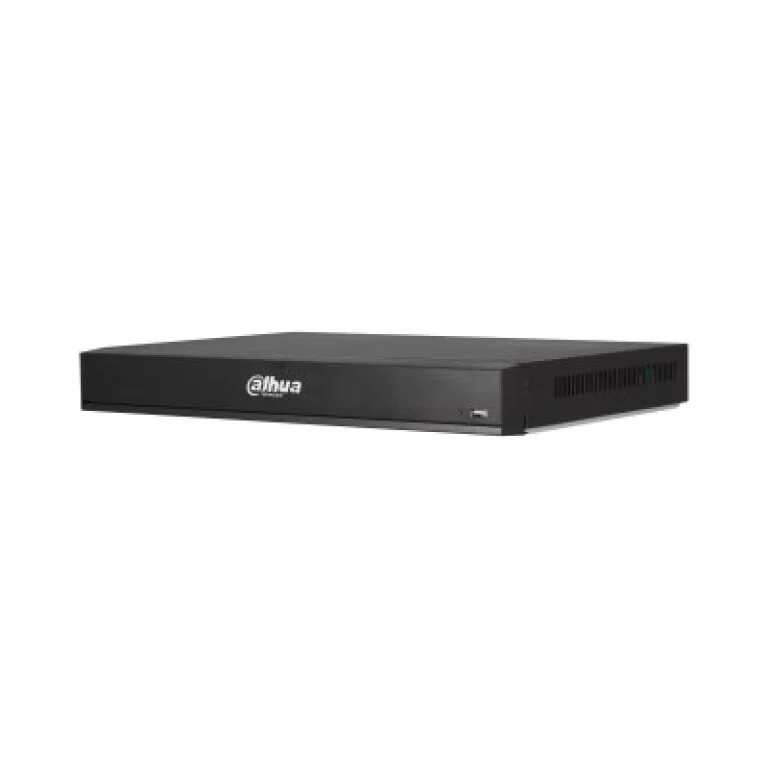

Dahua XVR7208A-4KL-X

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Supports 16/32 channels of IPC access, each channel up to 8MP input; Max 64/128Mbps Incoming Bandwidth
> IoT & POS functionalities
> Smart Search and Intelligent Video System



Add to wishlist
หมวดหมู่: ,

คำอธิบาย

Download DataSheet XVR7208A-4KL-X

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video and Audio
Analog Camera Input8/16 Channel, BNC
HDCVI Camera4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
IP Camera Input8+8/16+16 Channel, each channel up to 8MP
Audio In/Out4/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
Record RateMain stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)

Sub steram:960H(1~15fps);

D1/CIF/QCIF(1~25/30fps)

Bit Rate1Kbps ~ 8192Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Display
Interface1 HDMI, 1 VGA
ResolutionHDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen DisplayWhen IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input8/16
Relay Output3
Playback and Backup
Playback8CH: 1/4/9

16CH: 1/4/9/16

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD2 SATA Ports, up to 10TB capacity for each disk
eSATAN/A
Auxiliary Interface
USB2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232N/A
RS4851 Port, for PTZ Control
Electrical
Power Supply8CH: DC12V/4A

16CH: DC12V/5A

Power Consumption8CH: <10W (Without HDD)

16CH: <15W (Without HDD)

Construction
Dimensions1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
Net Weight1.8kg (3.70 lb) (without HDD)
Gross Weight3.2kg (7.05lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
CertificationsFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
