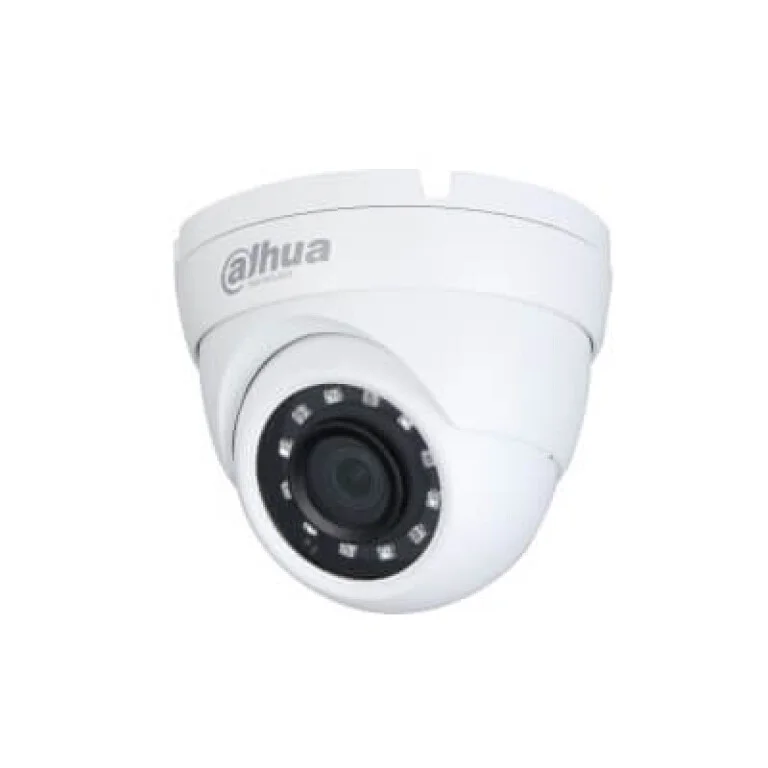

กล้องวงจรปิด Dahua HAC-HDW1400M 4MP

890 ฿

* The parameters and datasheets below can only be applied to 1400-S3 series

> Max [email protected]

> HD and SD output switchable

> 3.6mm fixed lens (2.8mm optional)

> Max. IR length 30m, Smart IR

> IP67, DC12V

HAC-HDW1400M
HAC-HDW1400M







รายละเอียดเพิ่มเติม

Download DataSheet HAC-HDW1400M

Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 2560(H)×1440(V), 4MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Minimum Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance 30 m (98.4 ft)
IR On/Off Control Auto; manual
IR LED Number 12
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F2.0 ;F2.0
Field of View 2.8 mm: 125° x 105° x 56°

(diagonal x horizontal x vertical)
3.6 mm: 104° x 87° x 47°

(diagonal x horizontal x vertical)

Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.7m (2.3 ft)

3.6 mm: 1.1m (3.6 ft)

DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 49.8m (163.4 ft) 19.9m

(65.3 ft)

10m

(32.8 ft)

5m

(16.4 ft)

3.6 mm 64m

(210.0 ft)

25.6m

(84 ft)

12.8m

(42 ft)

6.4m

(21 ft)

Video
Frame Rate CVI:

PAL: [email protected]; [email protected];

NTSC: [email protected]; [email protected]

AHD:

PAL: [email protected];

NTSC: [email protected]

TVI:

PAL: [email protected];

NTSC: [email protected]

CVBS:

PAL: 960H;

NTSC: 960H

Resolution 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 3.3W (12V DC, IR on)
Environment
Operating Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection Grade IP67
Structure
Casing Mental throughout the whole casing
Camera Dimensions φ93.4 mm × 79.4 mm ( φ3.68″ × 3.13″ )
Net Weight 0.27 Kg (0.60 lb)
Gross Weight 0.34 Kg (0.75 lb)
