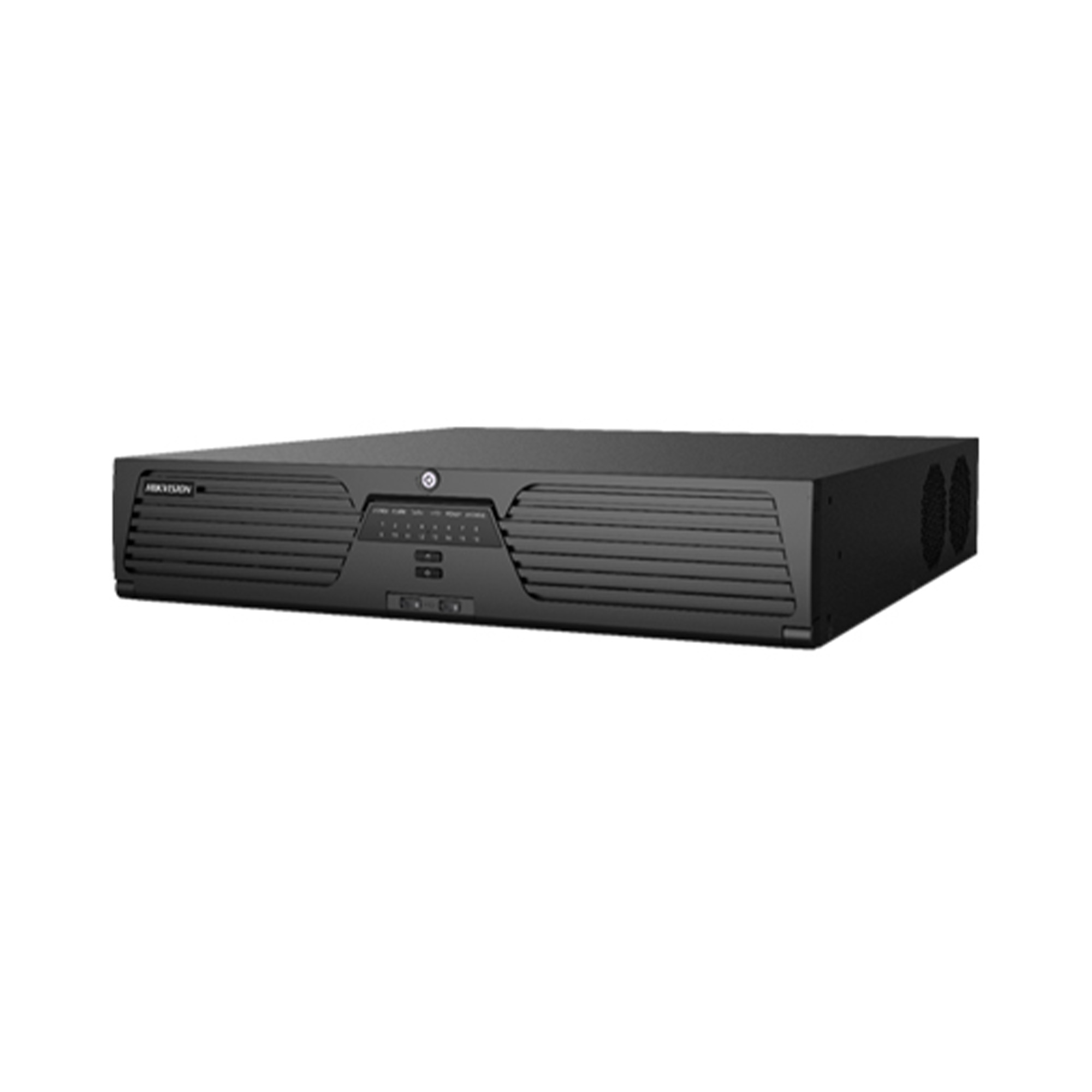

เครื่องบันทึก Hikvision NVR iDS-9632NXI-I8/8F(B)

Facial Recognition

• Facial Detection And AnalyticsSearch by picture is supported
• Face Picture Library32 libraries 100, 000 pictures
• Face Picture Comparison8-ch face pictures comparison alarm,,Alarm linkage actions: recording, audio warning, notify surveillance center, send email,

Perimeter Protection

• Human/Vehicle AnalysisUp to 16-ch 2 MP video analysis for human and vehicle recognition to filter false alarm

Video And Audio

• IP Video Input32-ch
• HDMI 1 OutputVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA OutputHDMI,VGA
• Incoming Bandwidth320 Mbps/256 Mbps
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability16-ch @ 1080p
• Synchronous Playback16-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF

Network

• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• InterfaceN/A

RAID

• RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• SATA8 SATA interfaces
• ESATA1 eSATA interface
• CapacityUp to 10 TB capacity for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4 (16/8 is optional)

General

• Power Supply200 W
• Consumption≤ 70 W
• Working Temperature-10 to +55° C (+14 to +131° F)
• Working Humidity10 to 90 %
• Chassis19-inch rack-mounted 2U chassis
• Dimension (W × D × H)445 × 470 × 90 mm (17.5″× 18.5″ × 3.5″)
• Weight≤ 10 kg (22 lb)
