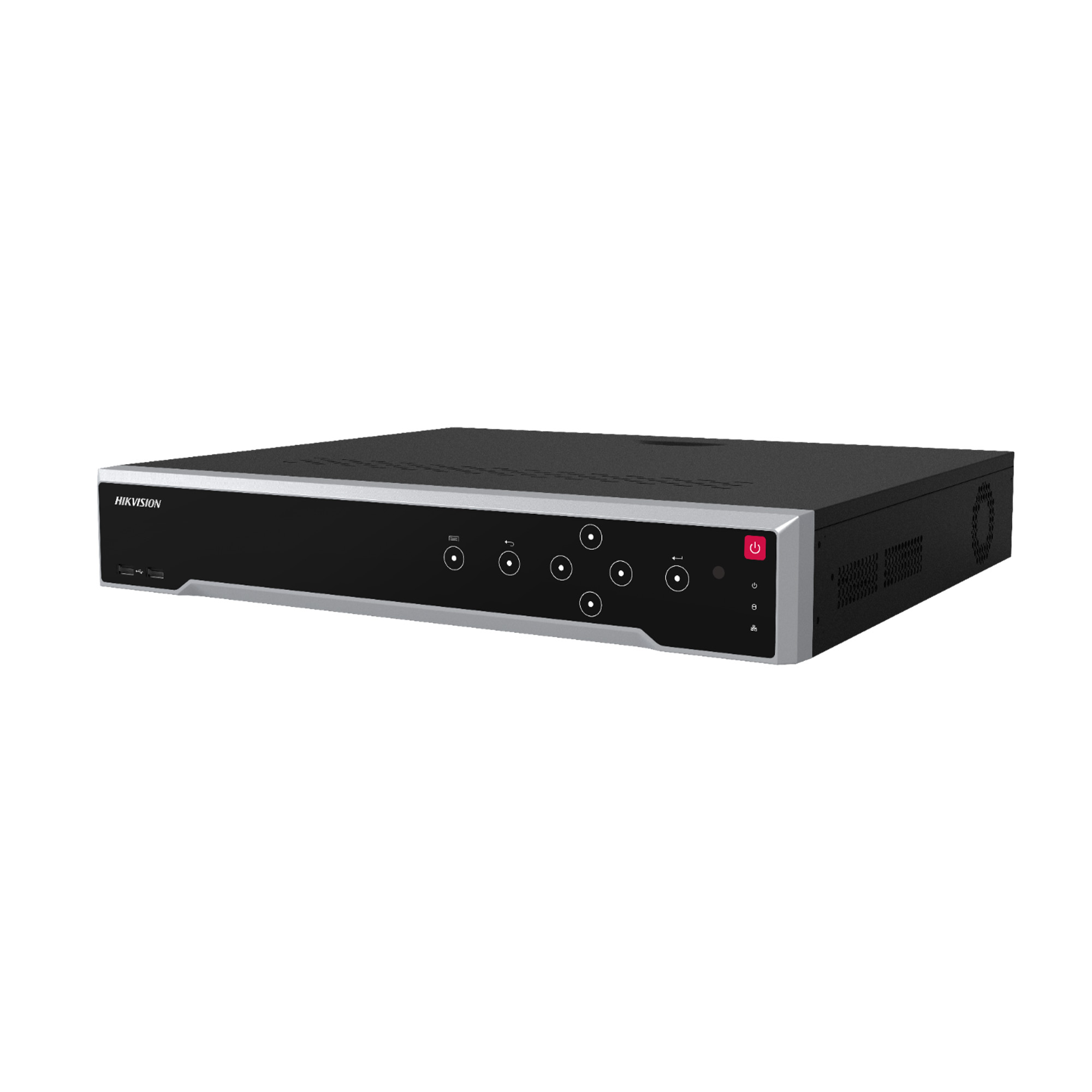

เครื่องบันทึก Hikvision NVR DS-7716NI-I4(B)

Video And Audio

• IP Video Input16-ch Up to 12 MP resolution
• HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Incoming Bandwidth160 Mbps 256 Mbps
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
• Synchronous Playback16-ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

Network

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Remote Connection128
• Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

PoE

• InterfaceN/A

RAID

• RAID TypeNo

Auxiliary Interface

• SATA4
• CapacityUp to 8TB capacity for each HDD
• Serial Interface1 RS-485 (half-duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4

General

• Power Supply100 to 240 VAC
• Consumption≤20 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10 to 90 %
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H)445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
• Weight≤ 5 kg (11 lb)
