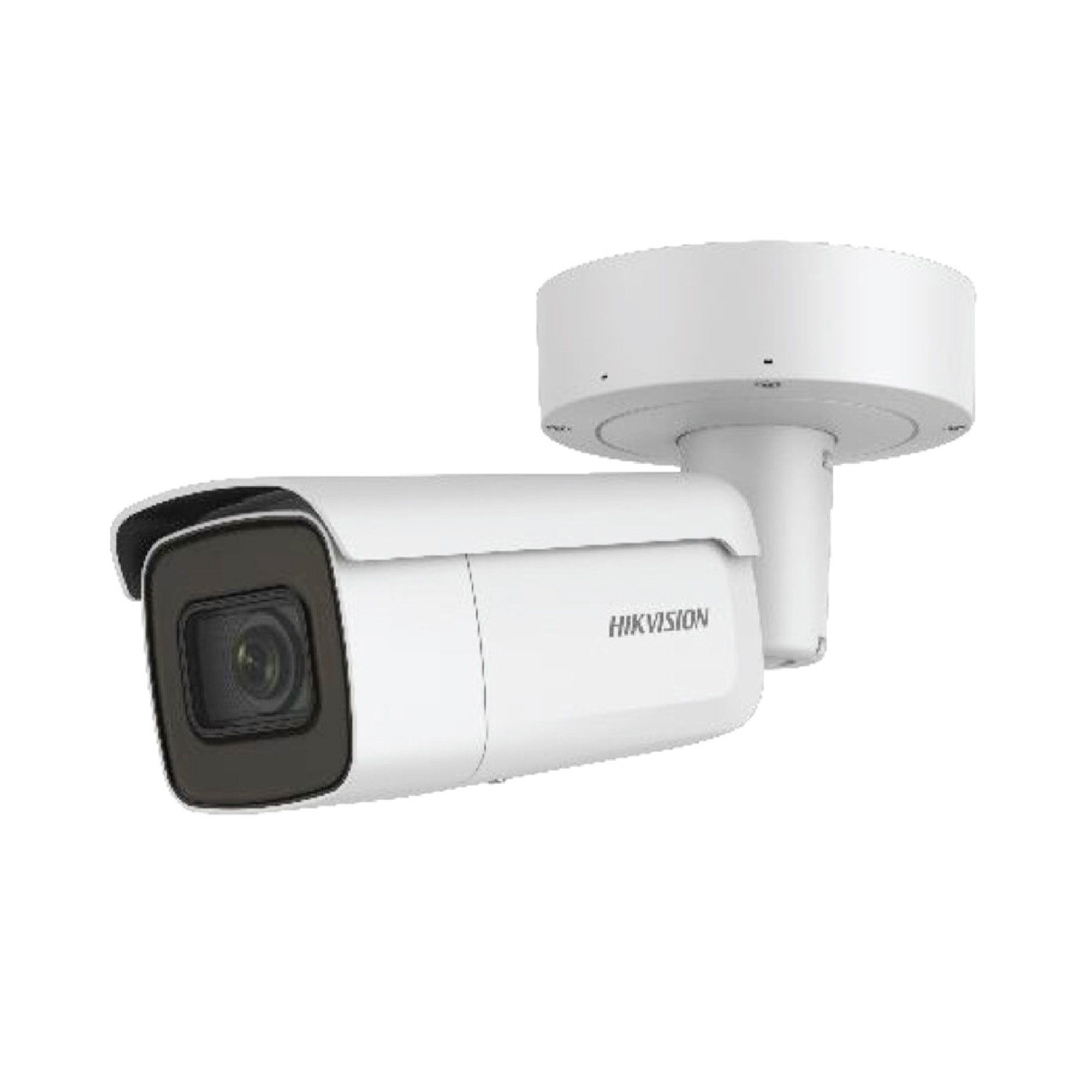

Hikvision DS-2CD2686G2-IZS

9,430 ฿

  • High quality imaging with 8 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Audio and alarm interface available
  • Connecter panel interface for easy installation
  • Robust structure design with full metal materials

คำอธิบาย

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens Type2.8 to 12 mm
  • FOVHorizontal FOV: 108.1° to 45.5° , vertical FOV: 58.4° to 25.7° , diagonal FOV: 127.3° to 52.1°
  • ApertureF1.4
  • Lens MountΦ14
  • Illuminator
  • IR RangeUp to 60 m
  • Wavelength850 nm
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream

    50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720)

    60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)

  • Sub Stream

    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

  • Third Stream

    50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

    60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

  • Video Compression

    Main stream: H.265+/H.264+/H.265/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding support
  • Region Of Interest (ROI)1 fixed region for main stream, sub-stream and third stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users, 3 levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Image EnhancementBLC, HLC, 3D DNR
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
  • Interface
  • Audio1 audio input (line in), two-core terminal block; 1 audio output(line out), two-core terminal block
  • Alarm1 alarm input, 1 alarm output (max. 24 VAC/24 VDC@500 mA)
  • On-Board StorageBuilt-in micro SD slot, up to 256 GB
  • Hardware ResetReset via reset button on camera body, web browser and client software
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
  • Deep Learning Function
  • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection (Human & Vehicle classification)
  • General
  • Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, two-core terminal block; reverse polarity protection; PoE (802.3at, class 4)
  • Power Consumption And Current12 VDC, 1.12 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 15 W
  • Camera Dimension

    Camera: Φ 144 × 333 mm (Φ 5.7" × 13.1\")

    With package: 385 × 190 × 180 mm (15.2 × 7.5\" × 7.1\")

  • Camera Weight

    Camera: approx. 1430 g (3.2 lb.)

    With package: approx. 2490 g (5.5 lb.)

  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIngress protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
