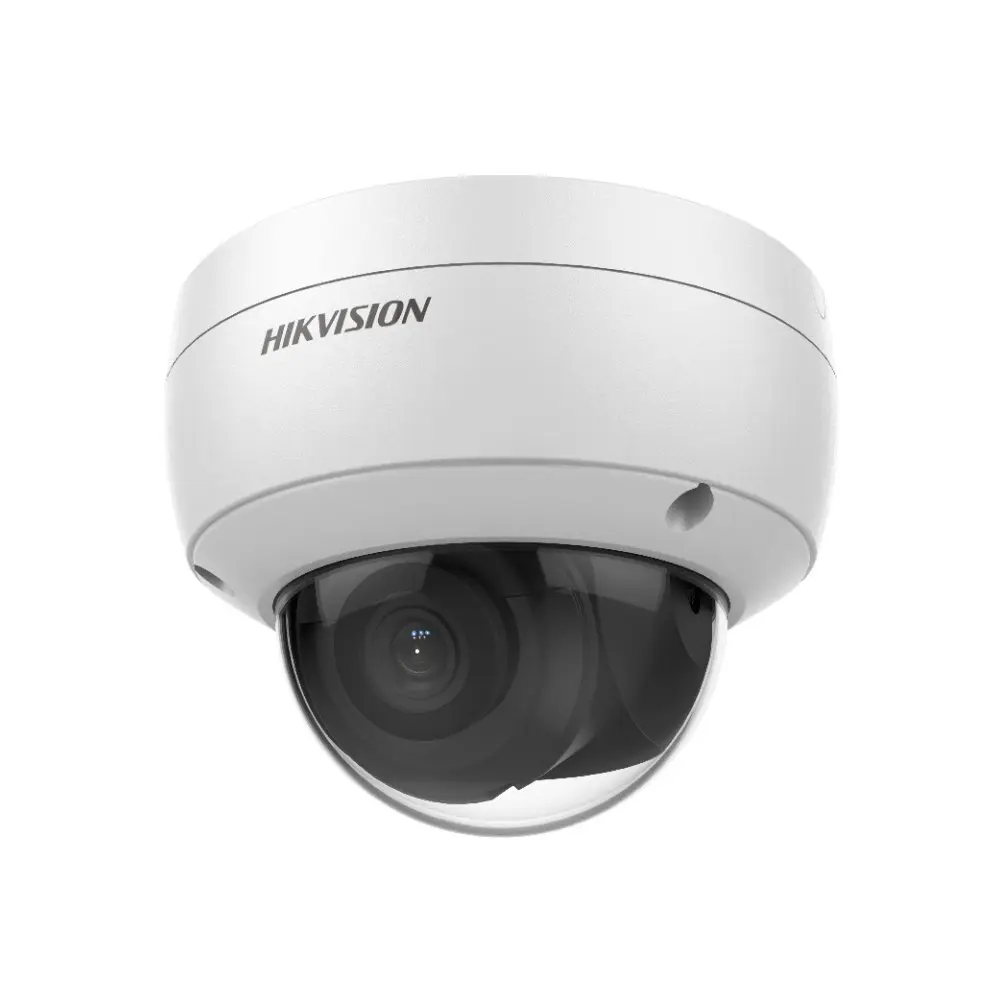

Hikvision DS-2CD2143G0-IU

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Robust structure design with full metal materials

คำอธิบาย

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusFixed
  • Lens Type2.8/4/6 mm
  • FOV2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°,4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
  • ApertureF1.6
  • Lens MountM12
  • Aperture TypeFixed
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution2688 × 1520
  • Main Stream

    50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

    60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Target CroppingNo
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio1 audio input (built-in microphone)
  • Video OutputNo
  • On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, face detection
  • Face DetectionYes
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
  • Firmware Version5.6.3
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption And Current12 VDC, 0.5 A, max. 6 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
  • Camera DimensionCamera: Φ121 × 92 mm (Φ4.8" × 3.6") ;With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
  • Camera WeightCamera: Approx. 570 g (1.3 lb.) ;With package: Approx. 950 g (2.1 lb.)
  • Approval
  • ProtectionIP66,IK10
