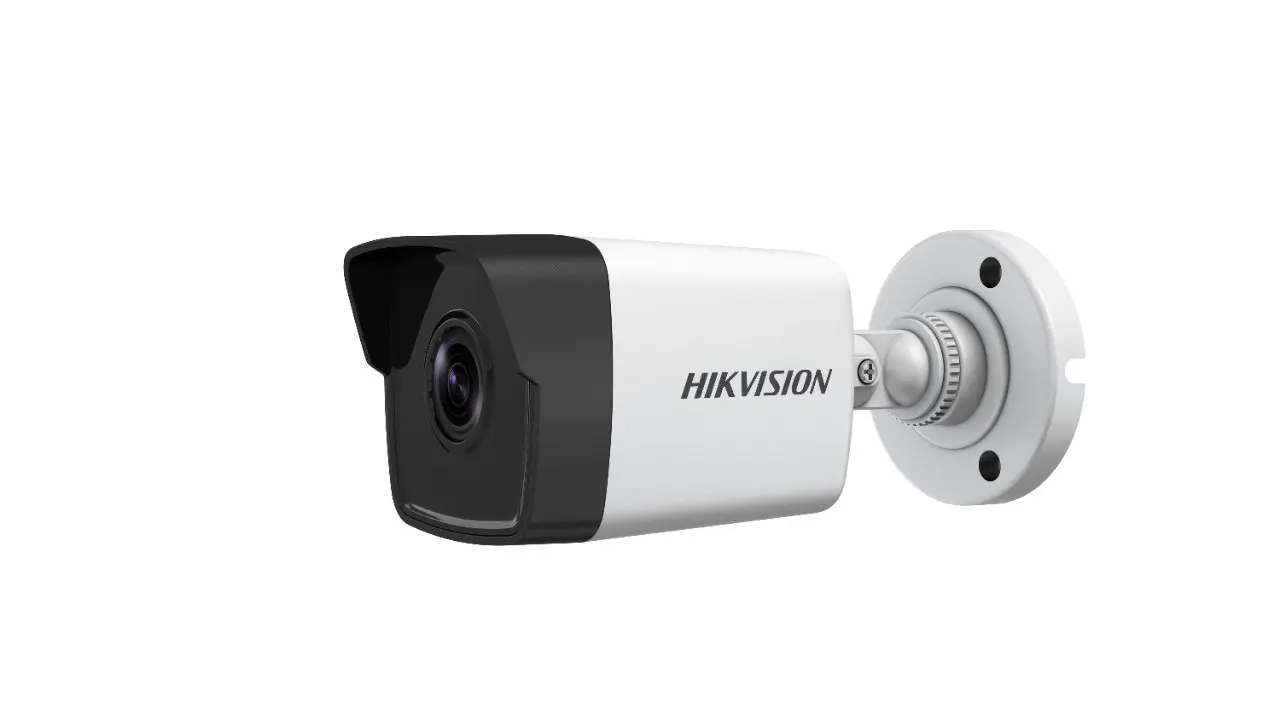

Hikvision DS-2CD1023G0E-I
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting thanks to DWDR technology
- Water- and dust- resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range.
คำอธิบาย
- Camera
- Image Sensor1/2.8" progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s
- Slow ShutterYes
- Day &NightIR cut filter
- Wide Dynamic RangeDWDR
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
- DNR3D DNR
- Lens
- Lens2.8 mm, 4 mm
- Auto-IrisNo
- ApertureF2.0
- FocusFixed
- FOV2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Video
- Max. Resolution1920 × 1080
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG
- H.264 TypeMain Profile/High Profile/Baseline Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region Of Interest1 fixed region for main stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, scheduled, day, night
- Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
- APIONVIF (PROFILE S), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator, and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm TriggerMotion detection, video tampering alarm, illegal login
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- General
- Firmware VersionV5.5.83
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- MaterialFront cover: metal, back cover & bracket: plastic
- DimensionsCamera: Ø 70 mm × 172.7mm (2.8" × 6.8"),With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
- WeightCamera: Approx. 270 g (0.6 lb.),With package: Approx. 510 g (1.1 lb.)
- Power Consumption And Current12 VDC, 0.3 A, Max: 3.5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
- Interface ProtectionIP67
