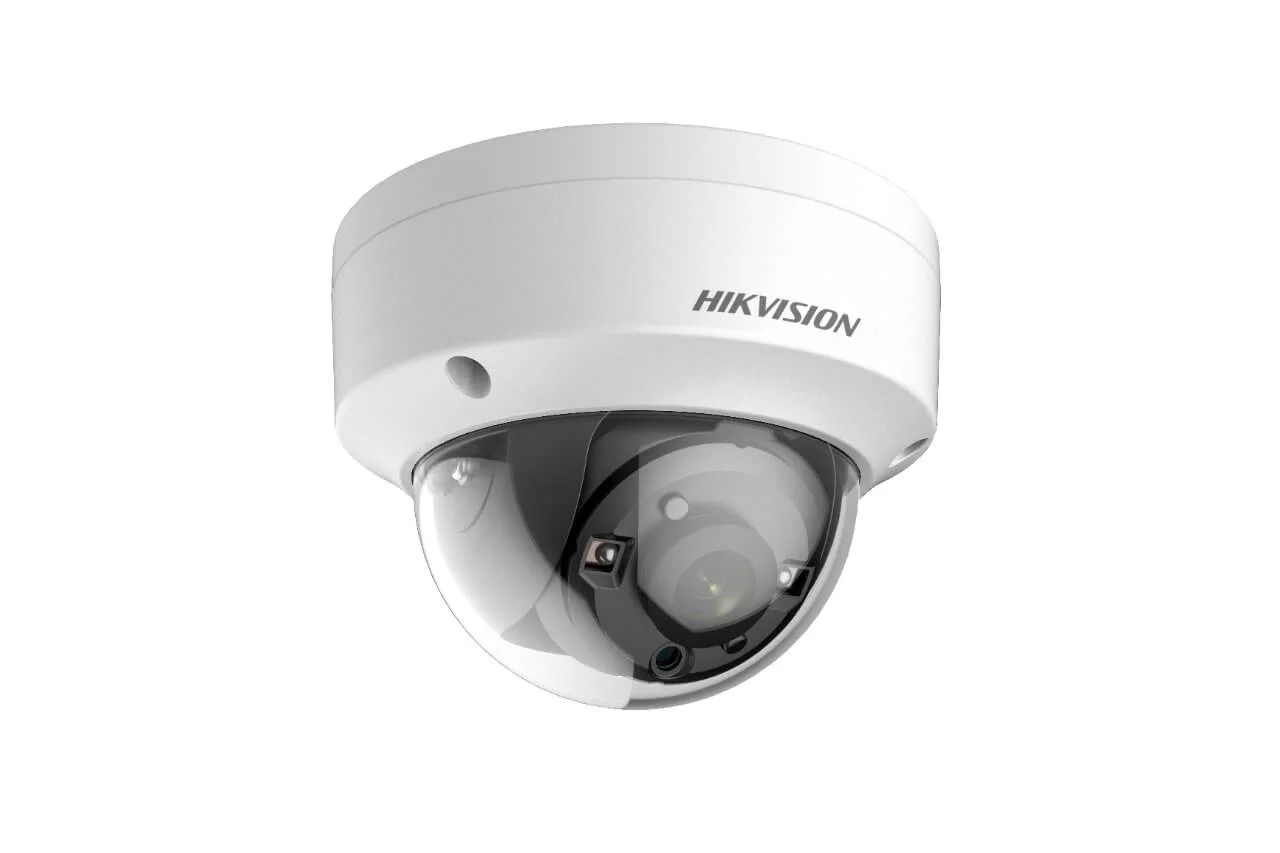

Hikvision 2MP DS-2CE56D8T-VPITF
- 2 MP high performance dome camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67) and vandal proof (IK10)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
DS-2CE56D8T-VPITF
คำอธิบาย
- Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Lens2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Horizontal Field Of View104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
- Lens MountM12
- Day & NightICR
- WDR (Wide Dynamic Range)≥ 130 dB
- Angle AdjustmentPan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
- Menu
- Image ModeSTD/HIGH-SAT
- AGCSupport
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceATW/MANUAL
- HLCYes
- BLC (Backlight Compensation)Yes
- LanguageEnglish
- FunctionsBrightness, Sharpness, Mirror, Smart IR, HLC
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Power Supply12 VDC ± 25%
- Power Consumption
Max. 3.4 W
- Protection LevelIP67 IK10
- MaterialMetal
- IR RangeUp to 30 m
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- DimensionsØ 111 mm × 82.4 mm (Ø 4.4" × 3.2")
- WeightApprox. 492 g (1.08 lb.)
PAL: 1080p@25fps
NTSC: 1080p@30fps
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Max. 3.4 W
