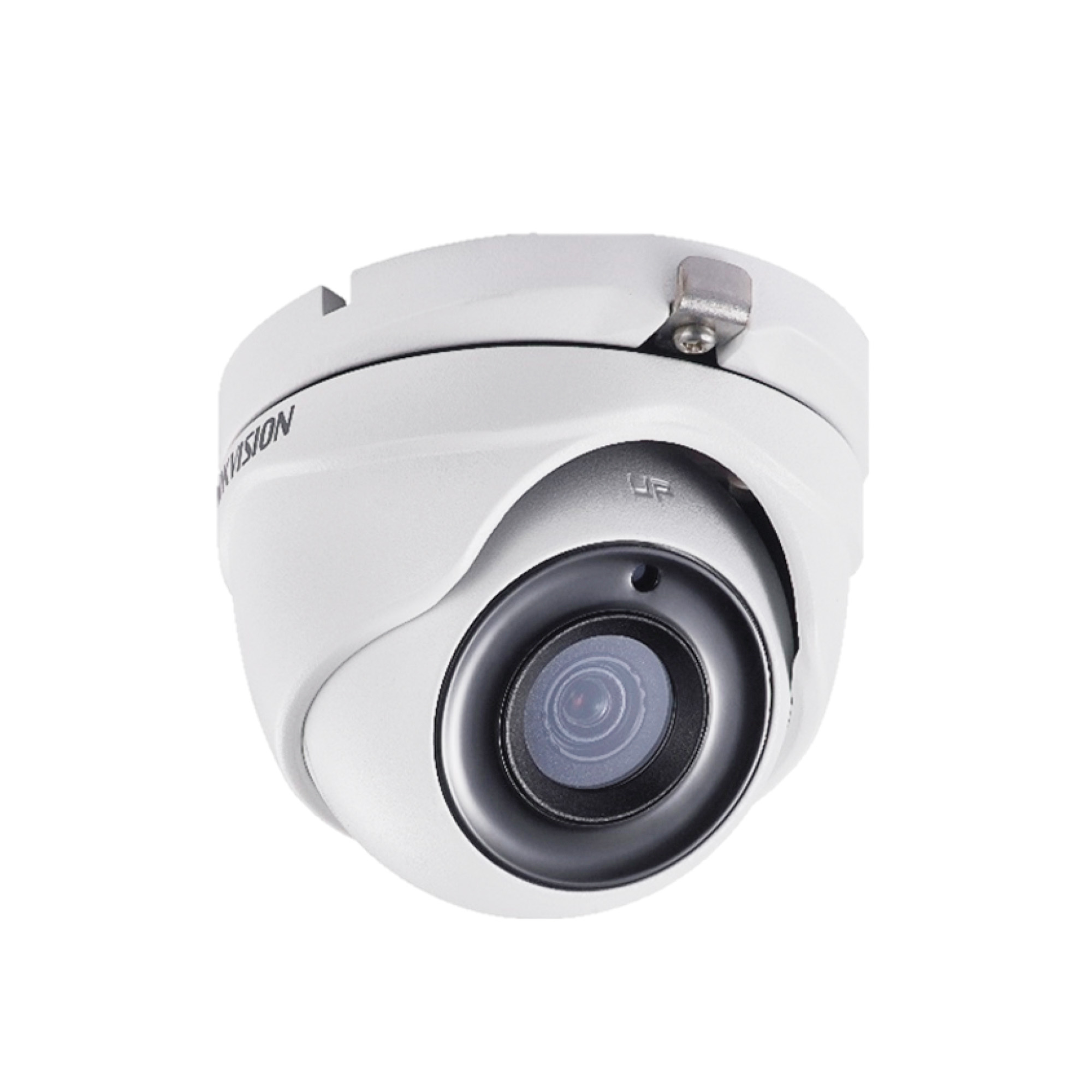

Hikvision 2MP DS-2CE56D8T-ITMF
- 2 MP high performance turret camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- EXIR 2.0: advanced infrared technology with 30 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
คำอธิบาย
- Camera
- Image Sensor2.0 mega pixel progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR, HLC
- Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥ 130 dB
- Image EnhancementYes
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialMetal
- Dimension89.47 mm × 68.2 mm (3.52" × 2.68")
- WeightApprox. 238 g (0.52 lb.)
- Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- LanguageEnglish
- Power Supply12 VDC ±25%
- ConsumptionMax. 3.4 W
- IR RangeUp to 30 m
- Approval
- ProtectionIP67
