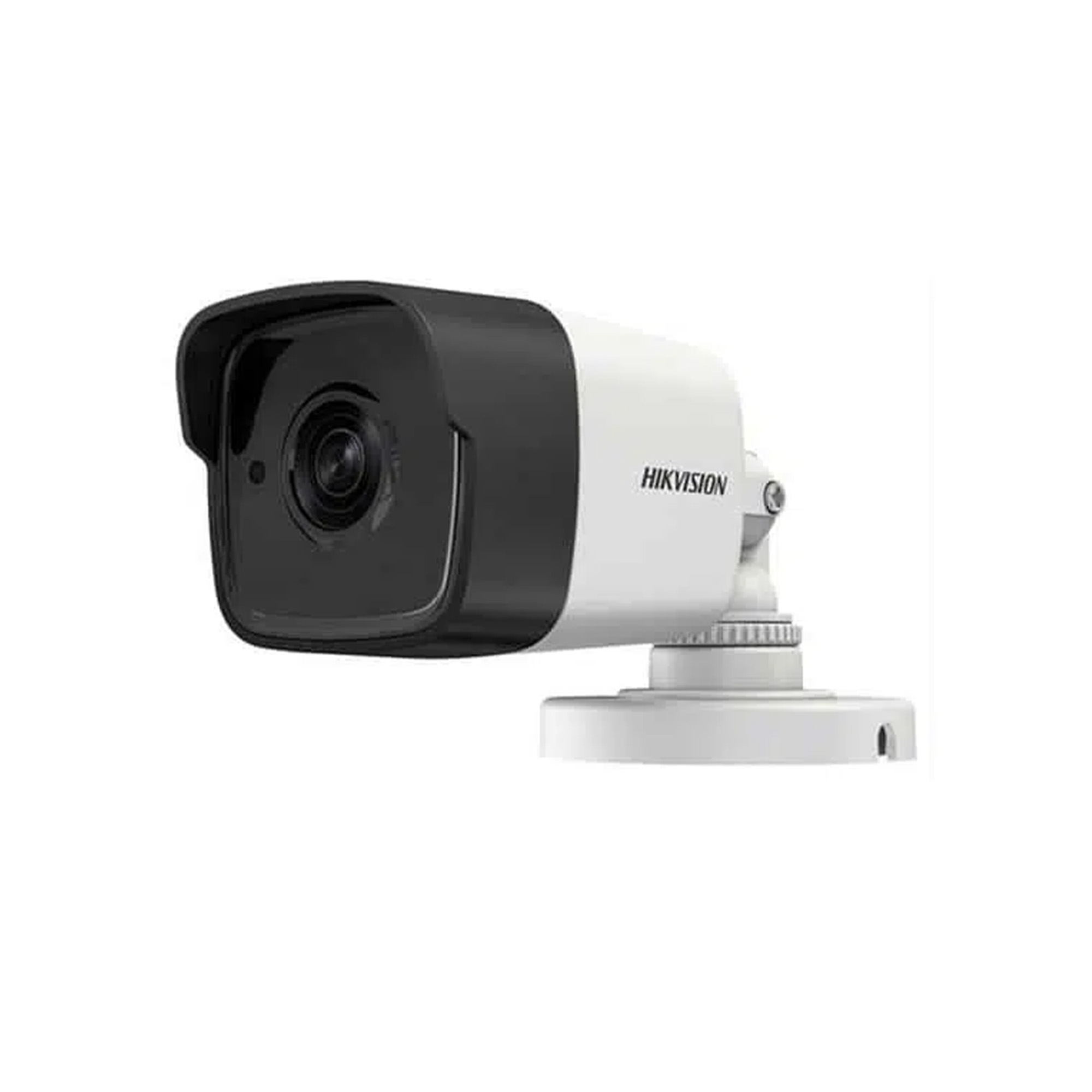

Hikvision 2MP DS-2CE16D8T-ITE

Hikvision 2MP DS-2CE16D8T-ITE - Image 2

Hikvision 2MP DS-2CE16D8T-ITE

2 MP high performance bullet camera
Strong night performance, capturing images in ultra-low light down to 0.003 lux
Clear imaging even against strong back lighting due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
EXIR 2.0: advanced infrared technology with 30 m IR distance
Water and dust resistant (IP67)
Transmits both HD video and power over the same coaxial cable

Add to wishlist

หมวดหมู่: - กล้องวงจรปิด, HIKVISION, Hikvision HDTVI 2MP, ระบบ ANALOG

คำอธิบาย

คำอธิบาย

Download DataSheet DS-2CE16D8T-ITE

Camera
Image Sensor2.0 megapixel progressive scan CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360°
Signal SystemPAL/NTSC
Slow ShutterMax.: 16 times
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
Lens MountM12
Image SettingsBrightness, Sharpness, Mirror, Smart IR
Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)> 120 dB
Image EnhancementWDR/BLC/OFF
Privacy MaskON/OFF, 4 programmable privacy masks
Noise ReductionLevel 1 to 10
White BalanceATW/MANUAL
AGCSupport
Interface
Video OutputTVI only
Event
Motion Detection4 programmable motion areas
General
MaterialMetal
Dimension58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
Approx. 350 g (0.77 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish, Chinese
Power Supply12 VDC ±25%/PoC.af
ConsumptionMax. 3.6 W
IR RangeUp to 30 m
Approval
ProtectionIP67
