XVR5208/16AN-4KL-X-8/16P

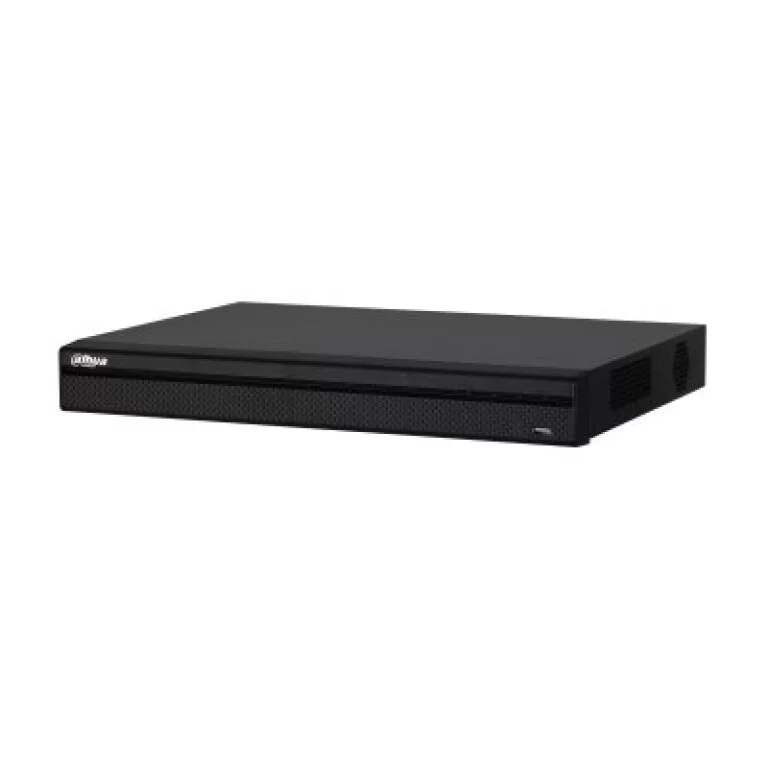

Dahua XVR5208AN-4KL-X-8P

> H.265+/H.265 dual-stream video compression

> Supports HDCVI/AHD/TVI/CVBS/IP video inputs

> Max 12/24 channels IP camera inputs, each channel up to 8MP; Max 48/96Mbps incoming bandwidth

> Smart Search and Intelligent Video System

> Total 48/96W output power consumption; Max supports 8/16 channels AF PoC cameras inputs or 4/8 channels AT PoC cameras inputs.

Note: HDCVI PoC system temporarily does not support balun accessing and UTP transmission



Add to wishlist
หมวดหมู่: ,

คำอธิบาย

Download DataSheet XVR5208AN-4KL-X-8P

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Video and Audio
Analog Camera Input8/16 Channel, BNC
HDCVI Camera4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS CameraPAL/NTSC
PoC Camera InputSupports HDCVI PoC Camera
IP Camera Input8+4/16+8 Channel, each channel up to 8MP
Audio In/Out1/1, RCA
Two-way TalkReuse audio in/out, RCA
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record RateMain stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)

Sub steram:960H(1~15fps);

D1/CIF(1~25/30fps)

Bit Rate32Kbps ~ 8192Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio CompressionG.711A, G.711U, PCM
Audio Sample Rate8KHz, 16 bit Per Channel
Audio Bit Rate64Kbps Per Channel
Display
Interface8CH:1 HDMI, 1 VGA

16CH: 1 HDMI, 1 VGA, 1 TV

ResolutionHDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720

VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen DisplayWhen IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm inputN/A
Relay OutputN/A
Playback and Backup
Playback8CH: 1/4/9

16CH: 1/4/9/16

Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDD2 SATA Ports, up to 10TB capacity for each disk
eSATAN/A
Auxiliary Interface
USB2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232N/A
RS4851 Port, for PTZ Control
Electrical
Power Supply8CH: DC53V

16CH: DC54V

Power Consumption8CH: <10W (Without HDD)

16CH: <20W (Without HDD)

Max. Power Output8CH: <48W

16CH: <96W

Construction
Dimensions1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″)
Device with PFH101

Rack Mount Tray

483mmx281mmx56mm (19.0″x11.1″x2.2″)
Net Weight

(without HDD)

1.7kg(3.75lb)

2.0kg (4.41lb)

Gross Weight3.62kg (7.98lb)
InstallationDesktop installation
Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support
Third-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
CertificationsFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
