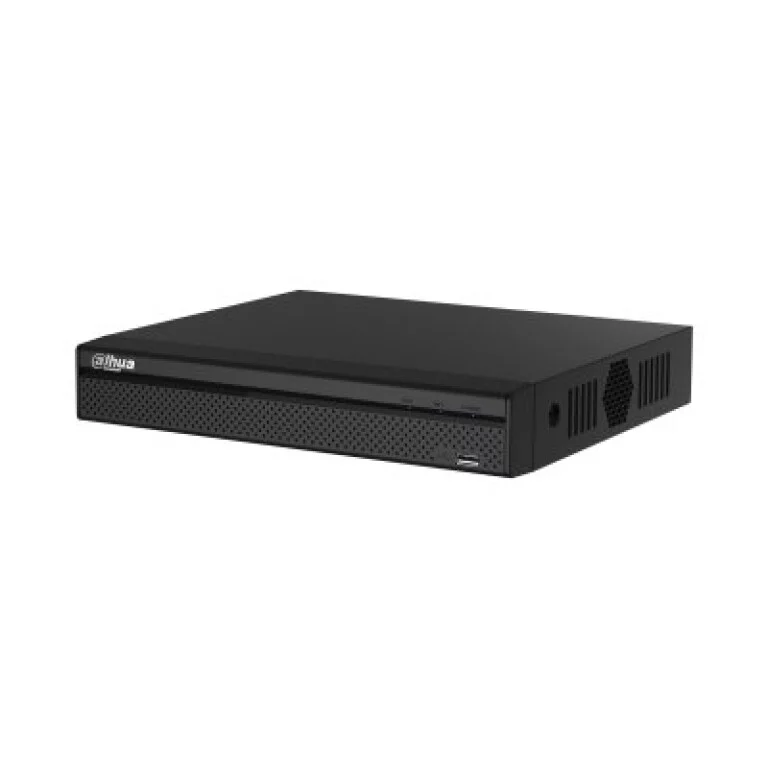

Dahua NVR2116HS-4KS2
- H.265/H.264 codec decoding
- Max 80Mbps incoming bandwidth
- Up to 8Mp resolution preview & playback
- Up to 1ch@8MP/4ch@1080P decoding
- HDMI/VGA simultaneous video output
คำอธิบาย
Download DataSheet NVR2116HS-4KS2
| Technical Specification | |||||
| Main Processor | Dual-core Embedded Processor | ||||
| Operating System | Embedded LINUX | ||||
| Audio and Video | |||||
| IP Camera Input | 16 Channel | ||||
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | ||||
| Display | |||||
| Interface | 1 HDMI, 1 VGA | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720 | ||||
| Decoding Capacity | 1ch@8MP 30fps, 4ch@1080P 30fps | ||||
| Multi-screen Display | 1/4/8/9/16 | ||||
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Compression | H.265+.H.264 | ||||
| Resolution | 8Mp/6MP/5MP/4MP/3MP/1080P/720P/D1&etc | ||||
| Record Rate | 80Mbps | ||||
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | ||||
| Record Mode | Manual, Schedule (Regular, Continuous), MD, Stop | ||||
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||
| Video Detection and Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips | ||||
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), and Tampering | ||||
| Alarm Input | N/A | ||||
| Relay Output | N/A | ||||
| Playback and Backup | |||||
| Sync Playback | 1/4 | ||||
| Search Mode | Time/Date, MD and Exact Search (accurate to second) | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom | ||||
| Backup Mode | USB Device/Network | ||||
| Third-party Support | |||||
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonice, Pelco, Samsung, Sanyo, Sony, Videotec, and more | ||||
| Network | |||||
| Interface | 1 RJ-45 port (10/100/1000Mbps) | ||||
| PoE | N/A | ||||
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS IP Search (Support Dahua IP Camera, DVR, NVS and etc.), Easy4ip | ||||
| Optical Fiber Interface | N/A | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Interoperability | ONVIF 2.4, SDK, CGI | ||||
| Storage | |||||
| Internal HDD | 1 SATA III Port, up to 6TB capacity for each HDD | ||||
| HDD Mode | Single | ||||
| eSATA | N/A | ||||
| Auxiliary Interface | |||||
| USB | 2 Ports (1 Rear USB 2.0,1 Front USB 2.0) | ||||
| RS232 | N/A | ||||
| RS485 | N/A | ||||
| Electrical | |||||
| Power Supply | Single, DC12V/2A | ||||
| Power Consumption | <3W (without HDD) | ||||
| Environmental | |||||
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | ||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH | ||||
| Construction | |||||
| Dimensions (WxDxH) | Compact 1U, 260mmx224.9mmx47.6mm (10.2″x8.9″x1.9″) | ||||
| Net Weight | 0.8kg (1.76lb) (without HDD) | ||||
| Gross Weight | 1.6kg (3.53lb) (without HDD) | ||||
| Certifications | |||||
| CE | EN55032, EN55024, EN50130-4, EN60950-1 | ||||
| FCC | Part 15 Subpart B, ANSI C63.4-2014 | ||||
| UL | UL60950-1 | ||||
